What is a Single Shaft Automatic Bag Opener Machine?
A Single Shaft Automatic Bag Opener Machine is a pre-sorting equipment designed to cut, shred, crush, and open waste bags before materials enter the downstream sorting system. It is widely used for municipal solid waste, commercial waste, construction and demolition waste, bio-waste, waste wood, and bulky waste processing.
The machine can efficiently perform bag cutting, shredding, crushing, and opening operations while resisting impurities commonly found in mixed waste streams. By opening compacted or sealed bags, it helps distribute materials more evenly, improving the efficiency of screening, air separation, and recyclable recovery systems. Unlike conventional shredders, it focuses on controlled bag opening to keep the material size closer to its original condition.If you’d like to learn about the price of an MSW bag opener machine in Malaysia, please click here
Working Principle
Single Shaft Automatic Bag Opener Machine working principle is straightforward: feed in, tear open, discharge out.
Bagged waste is first delivered into the machine by conveyor. Inside the chamber, the main shaft rotates at low speed and uses specially arranged tools to catch, pull, and tear the bags. Because the machine is designed for controlled opening rather than size reduction, the tearing action is gentler than what you would expect from a shredder.Once the bags are opened, the loosened material is discharged and passed to downstream equipment such as rotary trommel screens, vibrating screens, or separators for further treatment.
Advantages
In the municipal solid waste (MSW) pretreatment process, large volumes of bagged waste must be opened before entering the sorting stage. Single-shaft bag-opening machines use a low-speed, high-torque mechanism to tear open and release the contents of the bags, effectively opening the plastic packaging while minimizing damage to recyclables such as bottles, cans, paper, and plastic. The material is evenly dispersed after bag opening, which facilitates efficient sorting by subsequent equipment such as drum screens, air separators, and magnetic separators, thereby improving the processing efficiency and resource recovery rate of the entire sorting line.Having trouble with bag opening performance, blockage, or motor overload? See Common Faults and Solutions of Waste Bag Breaking Machine for practical troubleshooting guidance.
Applications
Single shaft auto bag opener machines are widely used as the front-end equipment in waste sorting and pre-treatment systems. Their main function is to efficiently open sealed waste bags and release the contained materials, ensuring smoother downstream separation, sorting, and processing. By improving material exposure at an early stage, they help increase overall system efficiency and stability in various waste management applications.If you are evaluating whether bag opening is necessary before screening and sorting, see our article Why Is Waste Bag Opener Necessary for Garbage Sorting Line? to understand how closed bags can affect downstream separation.

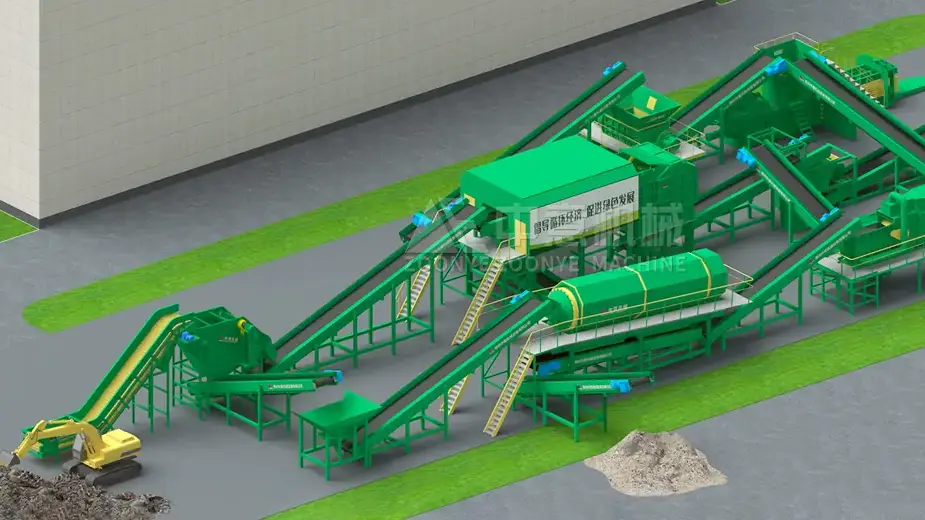

Municipal Solid Waste Sorting Plants
Used as the primary bag-opening unit in Municipal Solid Waste Sorting Plants, ensuring household waste bags are fully opened before screening, magnetic separation, and sorting processes.

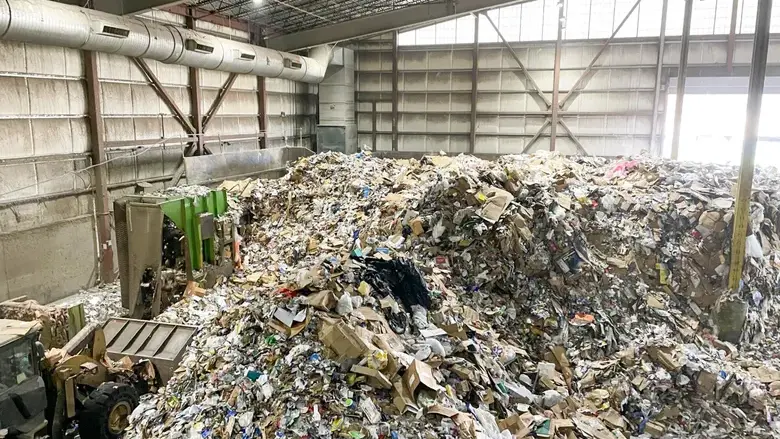

Recycling Facilities
Applied in recycling lines to open mixed waste bags containing plastics, paper, and metals, improving material release and enhancing sorting accuracy.
Organic Waste Pre-Treatment Systems
Used for food and organic waste bag opening, helping separate organic fractions for composting or anaerobic digestion with minimal material loss.

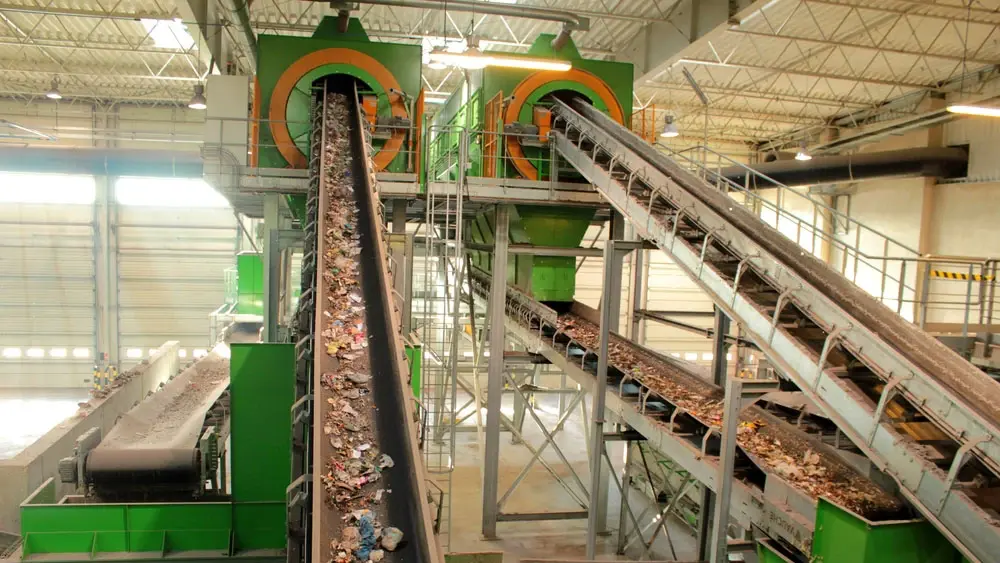

Industrial and Commercial Waste Lines
Suitable for factory and commercial waste streams, where it breaks open packaged waste bags to prepare materials for shredding, sorting, or disposal processes.
Specification
We provide customized design services for this series of equipment. We can adjust parameters such as spindle size, blade configuration, power, and processing capacity according to your specific material and production requirements, to deliver the optimal solution for your application.
| Model | Number of Blades (pcs) | Spindle Size (mm) | Spindle Speed (r/min) | Power (kW) | Processing Capacity (t/h) |
|---|---|---|---|---|---|
| DL1400 | 18 | Φ1100*1400 | 29.8 | 45-55 | 10-20 |
| DL2000 | 26 | Φ1100*2000 | 29.8 | 55-75 | 15-30 |
| DL2600 | 34 | Φ1100*2600 | 29.8 | 75-90 | 20-40 |
| DL3200 | 42 | Φ1100*3200 | 29.8 | 90-110 | 25-50 |
How to Choose the Right Single Shaft Automatic Bag Opener Machine?
Selecting the right Single Shaft Bag Opener starts with understanding your waste type, required capacity, and production line layout. From our engineering experience, focusing on the following factors will help you achieve more stable operation and higher sorting efficiency.
1. Confirm Your Required Capacity
First, determine how much material you need to process per hour:
- DL1400: 10–20 t/h
- DL2000: 15–30 t/h
- DL2600: 20–40 t/h
- DL3200: 25–50 t/h
Choosing the right capacity helps you maintain stable feeding while avoiding overload and unnecessary energy consumption.
2. Evaluate Your Material Characteristics
Different waste materials require different cutting configurations.
If you process compacted municipal waste, commercial waste, or bulky bagged materials, we recommend models with higher blade quantities for stronger tearing performance and more efficient bag opening. Longer spindle designs can also help you improve material distribution and handling efficiency.
3. Check Your Power & Site Conditions
Single Shaft Bag Openers typically operate within a 45–110 kW power range. Before selection, Zhongyi ECO recommends that you confirm your plant’s available power supply, conveyor layout, and installation space to ensure smooth integration with the sorting line.
4. Focus on Downstream Sorting Efficiency
A good bag opener should open bags effectively without excessive shredding. This allows your downstream screening, air separation, and recyclable recovery systems to operate more efficiently.
5. Consider Maintenance & Operating Costs
Low-speed operation helps you reduce wear, noise, and energy consumption. We also use wear-resistant components and modular structures to help shorten maintenance time and lower long-term operating costs.
6. Choose Customized Solutions When Needed
If your project has special waste materials, limited plant space, or unique throughput requirements, Zhongyi ECO can provide customized blade configurations, spindle lengths, and feeding solutions to better match your application.
Single Shaft vs. Double Shaft Automatic Bag Opener Machine
Both single shaft and double shaft bag opener machines are used for opening bagged waste in recycling and sorting lines, but they are applied under different operating conditions.
A single shaft bag opener machine is typically selected when the priority is controlled bag opening with minimal disturbance to the material inside. It is commonly used in systems where downstream sorting performance depends on keeping recyclables such as plastics, paper, and containers as intact as possible.
A double shaft bag opener machine is designed for heavier-duty applications. The counter-rotating shafts generate higher tearing force, making it suitable for compacted, high-density, or irregular bagged waste. It is more adaptable to challenging feed conditions, but may result in higher levels of material breakage depending on waste composition.
In practice, selection is based on waste type, compaction level, and downstream sorting requirements. For stable MSW streams with strict material quality requirements, single shaft systems are often preferred. For mixed or heavily compacted waste with higher throughput demands, double shaft systems are more commonly used.
If you are not sure which configuration fits your project, our team can evaluate your waste characteristics and process requirements and recommend the appropriate solution.
Zhongyi Project Cases: Decoration Waste Sorting & Disposal Center
This decoration waste sorting and disposal project was designed for processing urban solid waste generated from construction and renovation activities, with a handling capacity of 150–200 tons per hour. The production line included core equipment such as a Single Shaft Bag Opener, crushers, vibrating screens, bounce screens, air separators, and conveyor systems.
At the front end of the line, the Single Shaft Automic Bag Opener was used together with a chain plate conveyor to open mixed bagged waste efficiently while reducing excessive material crushing. This helped improve the downstream screening and sorting efficiency for recyclable materials such as wood, plastics, metal, and aggregates.
The complete decoration waste recycling line adopted crushing, screening, magnetic separation, and air separation processes to improve resource recovery efficiency. Recycled aggregates could be reused for recycled bricks and construction materials, while metal waste was collected for recycling.
To reduce dust pollution, the system adopted enclosed conveyors, mist spraying systems, and pulse bag dust collectors. Zhongyi engineers also provided on-site installation guidance and commissioning support to ensure stable operation of the entire waste sorting plant.
Single Shaft Automic Bag Opener Manufacturer and Supplier
As a professional manufacturer and supplier with over decade experience, we focus on R&D, production and sales of premium single shaft bag openers. Our factory boasts advanced processing facilities and strict quality control system, all machines comply with international quality standards. Diversified standard models satisfy different processing capacity demands for waste recycling and material treatment projects worldwide.
We provide one-stop services including scheme design, customized manufacturing, installation guidance and after-sales support, and deliver complete production line solutions tailored to your demands. Custom structure and parameter adjustment are available to fit diverse working scenarios. If you seek reliable single shaft bag opener equipment, please contact us freely to get professional solution and favorable quotation.
FAQ
It is used to open bagged waste before sorting so the material inside can be separated more easily in downstream processes.
No. A bag opener is intended to open bags, not reduce the size of the material. That is the main difference.
In most cases, it improves downstream performance because the material is exposed and more evenly distributed after bag opening.
Yes. It is designed to work as part of a continuous sorting line.
Yes. It can be used for wet household waste and organic fractions, provided the model and system layout are properly matched.
Routine inspection and normal wear-part replacement are usually enough. Actual maintenance intervals depend on the waste composition and operating conditions.
Get a Quote for Double Shaft Bag Opener Machine
If you have questions about equipment selection, system configuration, or specific project requirements, the team at Zhongyi Mining Machinery can provide practical technical support and customized solutions. Feel free to contact us to discuss your project and find the most suitable setup for your waste sorting system..
