What is MSW Bag Breaker Machine?
The MSW Bag Breaker Machine is a front-end waste processing equipment used in municipal solid waste (MSW) sorting and recycling plants. It is mainly designed to open mixed bagged waste without excessively crushing recyclable materials inside the bags. The machine helps separate plastics, paper, PET bottles, organic waste, and other materials before screening and sorting processes.
The system combines feeding, conveying, and bag opening functions to ensure stable and continuous material flow for downstream equipment such as trommel screens, air separators, and magnetic separators. It is widely used in MSW sorting plants, RDF production lines, construction waste recycling systems, and solid waste treatment projects.If you’d like to learn about the price of an MSW bag opener machine in Malaysia, please click here
Working Principle
The MSW Bag Breaker Machine uses a low-speed tearing structure to open bagged municipal solid waste and mixed recyclable materials without excessive crushing. Materials are evenly fed into the machine through the conveying system, where rotating shafts tear and separate the waste bags. The opened materials are then discharged continuously to downstream equipment such as trommel screens, air separators, and magnetic separators for further sorting and recycling.
After the incoming bagged rubbish is opened and sorted through downstream systems, the remaining high-value plastics, cardboards, or RDF materials require high-density compression for logistical efficiency. Integrating our automated waste baler machine at the end of the sorting line allows facilities to produce stackable, tightly bound bales that drastically reduce storage space and transportation costs.If you are evaluating whether bag opening is necessary before screening and sorting, see our article Why Is Waste Bag Opener Necessary for Garbage Sorting Line? to understand how closed bags can affect downstream separation.

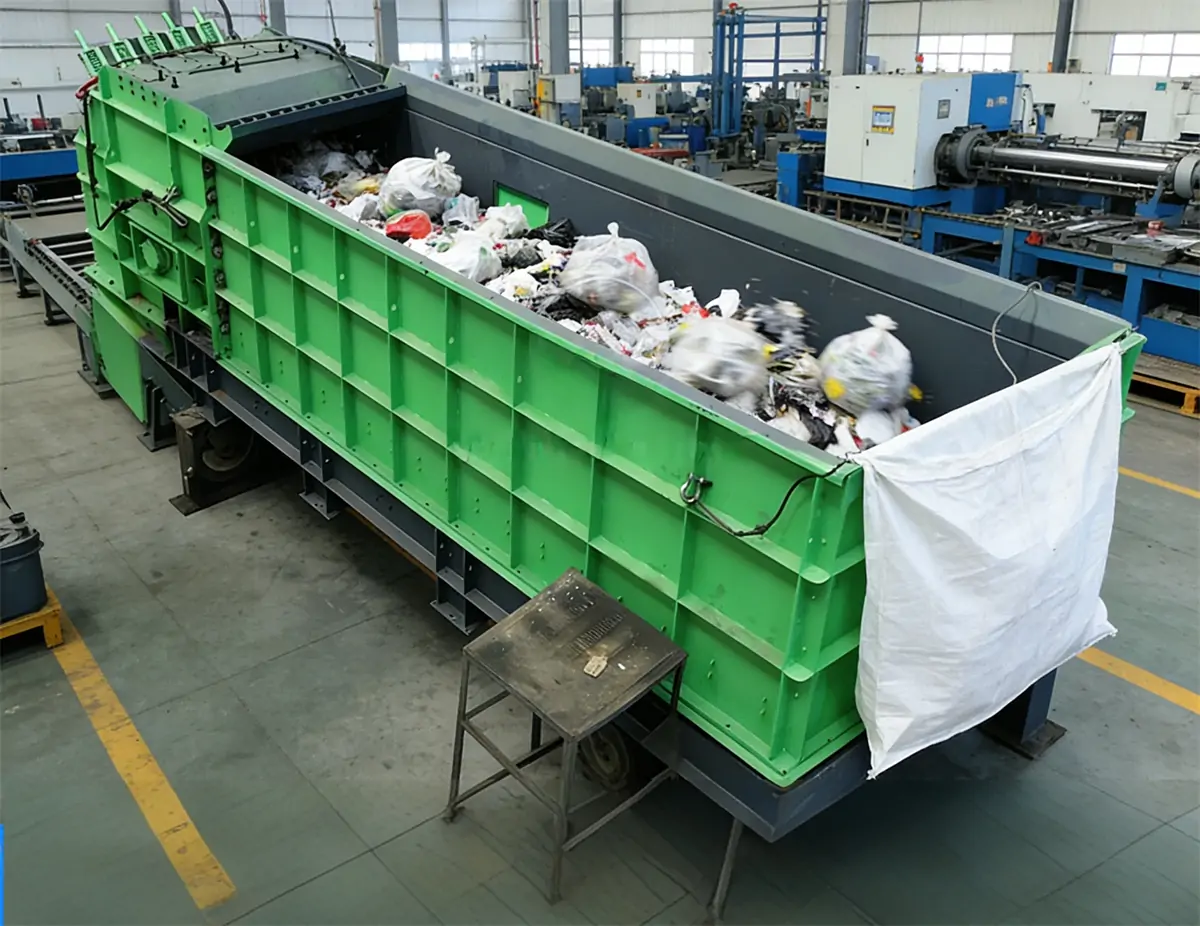

Main Components of Bag Breaker Machine
The MSW waste Bag Breaker Machine mainly consists of a feeding conveyor, tearing shafts, drive system, discharge conveyor, and steel support frame. Each component is designed for stable bag opening and continuous material conveying in MSW and solid waste sorting plants.
Feeding Conveyor
Feeds bagged waste materials evenly into the machine and maintains stable material flow.

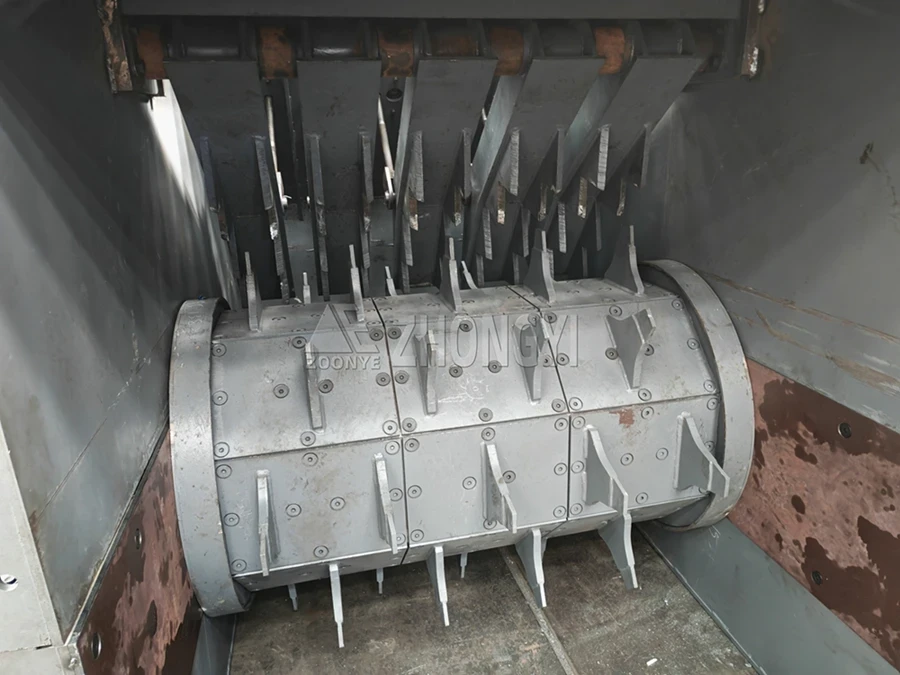

Tearing Shafts
Opens waste bags through low-speed tearing action while reducing damage to recyclable materials inside the bags.
Drive System
Provides stable power transmission and supports continuous operation under heavy-load working conditions.

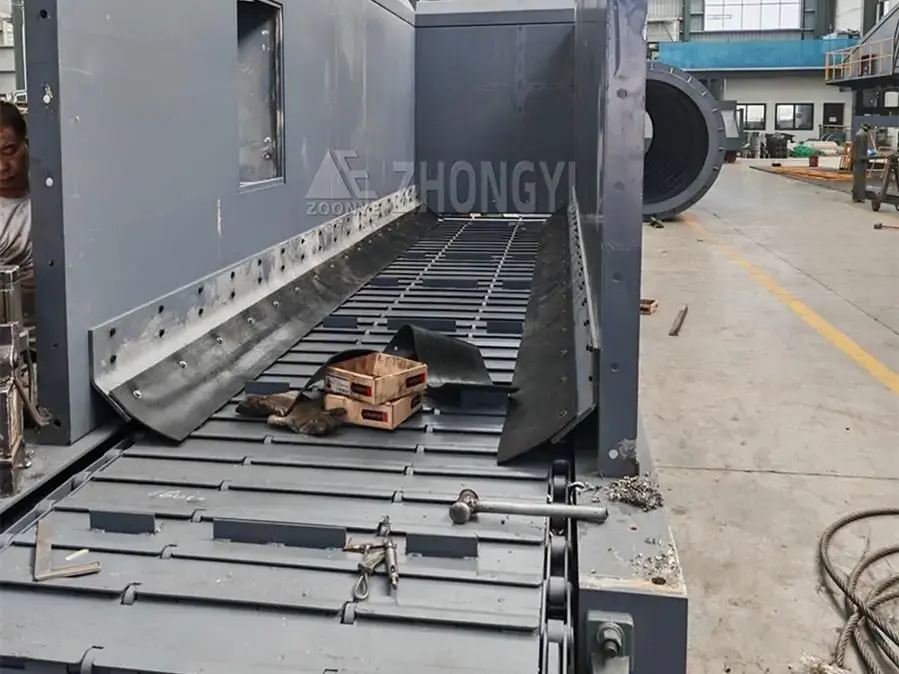

Discharge Conveyor
Transfers opened materials smoothly to downstream screening and sorting equipment.
Steel Support Frame
Heavy-duty structure design improves equipment stability and adapts to long-term operation in waste recycling plants.
Specification
The MSW Bag Breaking Machine is designed for stable and continuous opening of bagged municipal solid waste, plastics, paper, and recyclable materials. The machine can be customized according to your material type, processing capacity, feeding size, and plant layout requirements to match different waste sorting and recycling systems.Having trouble with bag opening performance, blockage, or motor overload? See Common Faults and Solutions of Waste Bag Breaking Machine for practical troubleshooting guidance.
| Model | Impact Type | Capacity (m³/h) | Drive Power (kW) |
|---|---|---|---|
| PDD1000/PDS | Impact Frame (Soft) / Impact Teeth (Hard) | 15–20 | 7.5+30 / 1.4+30 |
| PDD1200/PDS | Impact Frame (Soft) / Impact Teeth (Hard) | 20–30 | 7.5+30 / 1.4+30 |
| PDD1400/PDS | Impact Frame (Soft) / Impact Teeth (Hard) | 25–35 | 7.5+30 / 1.4+30 |
| PDD1600/PDS | Impact Frame (Soft) / Impact Teeth (Hard) | 30–40 | 7.5+30 / 1.4+30 |
Advantages
Application
The MSW bag opener machine is widely used in solid waste sorting and recycling systems where mixed bagged materials need to be opened and evenly fed into downstream processing lines. It is suitable for municipal waste treatment and various recycling plant applications.
Municipal Solid Waste (MSW) Plants
Used to open household waste bags and ensure stable feeding into sorting systems, improving overall treatment efficiency.
Construction & Decoration Waste Recycling
Applied in mixed construction waste lines to break open bagged light materials such as plastics, wood, and packaging waste.
Material Recovery Facilities (MRF)
Helps separate recyclable materials like PET bottles, paper, and plastics before screening and sorting processes.
RDF & Waste-to-Energy Plants
Ensures uniform material distribution for further processing into refuse-derived fuel (RDF) or energy recovery systems.
MSW Bag Breaker Machine Manufacturer and Supplier
Zhongyi ECO designs and supplies MSW Bag Breaker Machines for municipal solid waste and recycling plants, with complete system support from feeding and bag opening to conveying. The equipment is built for stable operation in mixed waste conditions and is widely used in MSW, construction waste, and recycling facilities.
We provide customized solutions based on material type, capacity, and site layout, covering equipment selection, system design, installation guidance, and commissioning support.
Contact us to discuss your project and get a practical solution for your MSW waste processing line.
FAQ
It is used to open bagged municipal solid waste and mixed recyclable materials such as plastics, paper, and PET bottles, and prepare them for sorting and separation.
No. The machine is designed for bag opening and separation, not crushing, helping keep recyclable materials like plastics and paper in usable condition for downstream sorting.
It can handle MSW, bagged household waste, PET bottles, waste paper, plastics, light packaging waste, and mixed solid waste from recycling plants.
By opening waste bags evenly and ensuring stable feeding, it reduces manual sorting work and improves the performance of screening and separation equipment.
Yes. It can be installed at the front end of MSW, RDF, or recycling sorting lines and connected with conveyors, screens, and separation systems.
Yes. Zhongyi ECO provides customized design based on capacity, material type, feeding size, and plant layout to match different project requirements.
