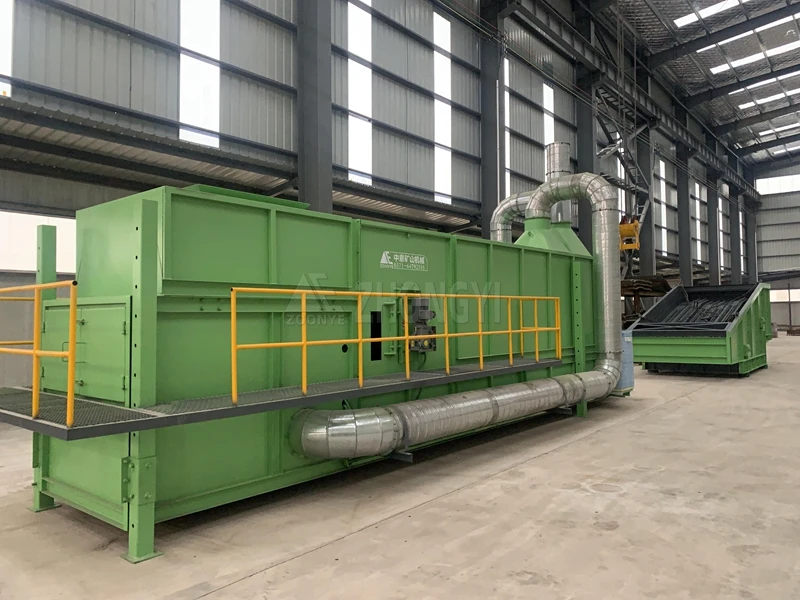

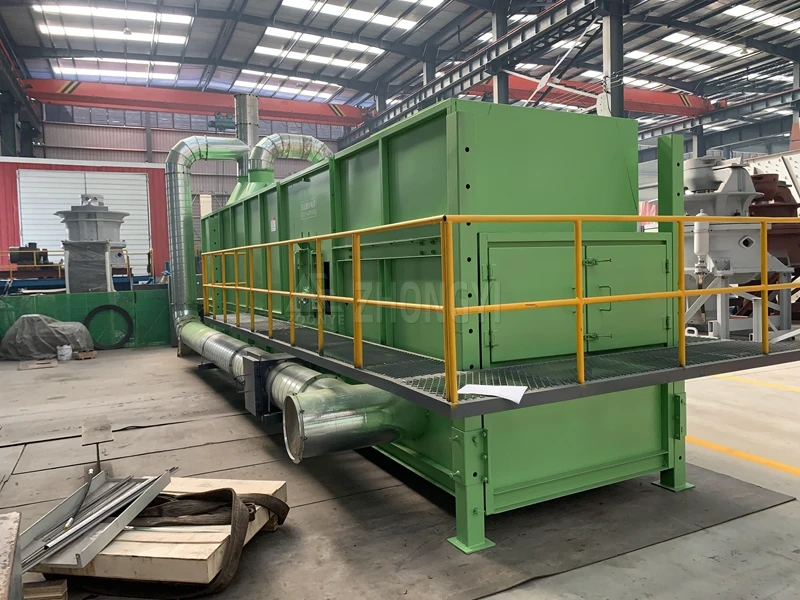

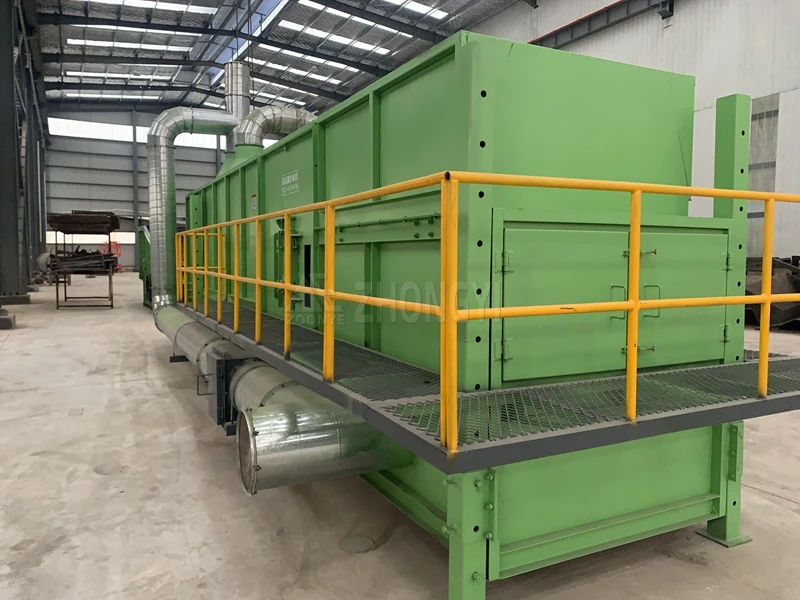

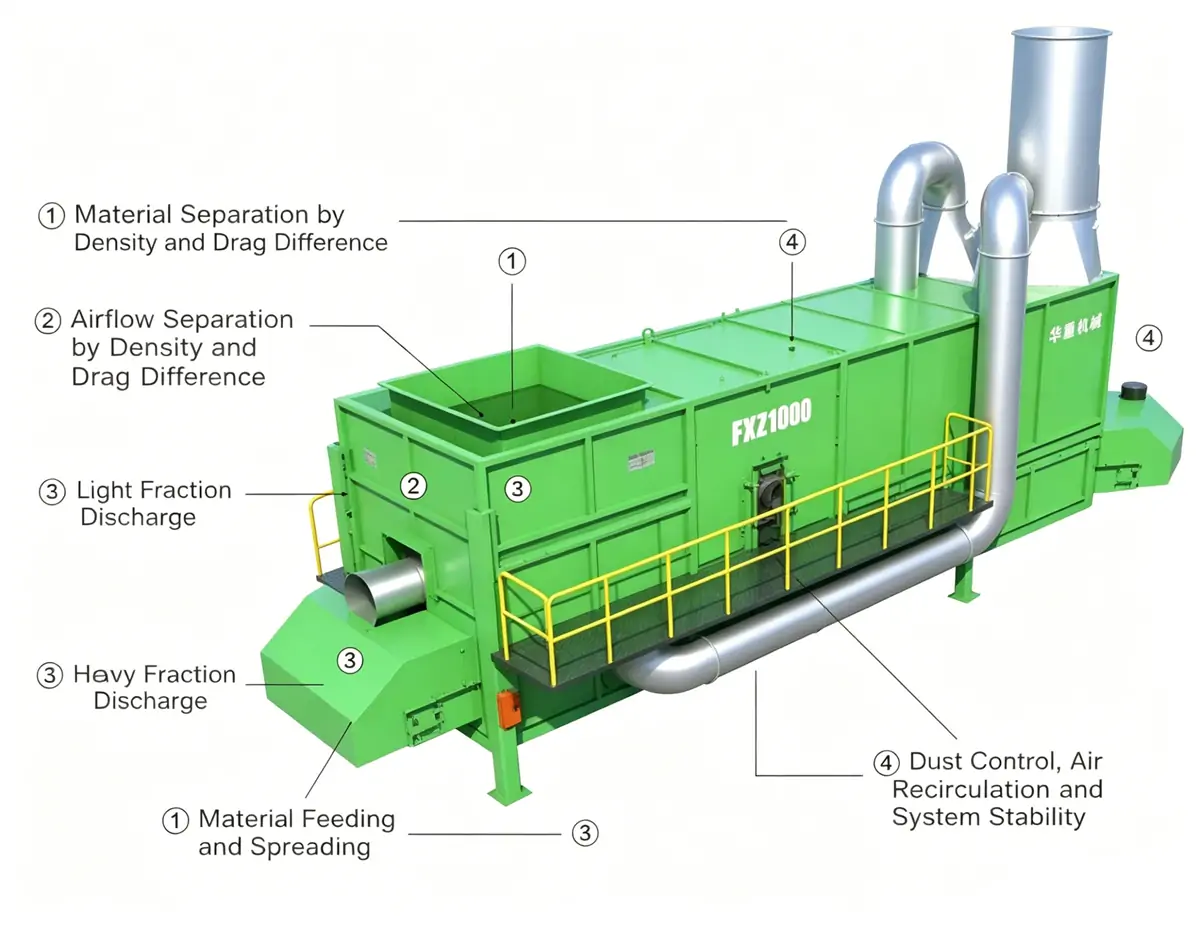

What is a Comprehensive Windshifter Recycling Machine?
The Comprehensive Windshifter Recycling Machine, also known as an air classifier, air separator, or air density separator, is a core piece of solid waste processing equipment that separates light and heavy materials based on differences in airflow and material density. The equipment utilizes a dual-blower system and an optimized air duct structure, combined with a uniform feeding system (optional belt or vibrating feeder), to create a stable, continuous airflow circulation within an extra-large settling chamber, thereby achieving efficient separation of lightweight materials (such as plastic film, paper, and wood chips) from heavy materials (such as sand, gravel, bricks, and metal). Typical processing capacity ranges from approximately 30 to 150 m³/h, with stable operation and strong adaptability.
In the process flow, this equipment is typically positioned after crushing and screening and before fine sorting and resource recovery, serving as a key link connecting “pretreatment” and “fine sorting.” Upstream equipment generally includes waste shredders, crushers, trommel screens or vibrating screens, and conveyor systems, which are used to achieve material disintegration and particle size control; Downstream, it connects to magnetic separation equipment, manual sorting platforms, or RDF preparation systems to enable metal recovery, combustible material extraction, and the graded utilization of recycled aggregates. Its large settling chamber structure and powerful airflow circulation design effectively prevent material blockages and entanglement, ensuring more stable and efficient continuous processing of construction waste, renovation waste, and mixed light and heavy materials.
Xinzhongyi ECO provides design, manufacturing, integration and installation of customized windshifter systems, delivering complete recycling line solutions based on project requirements with stable performance and long-term support.
Working Principle
The working principle of a comprehensive windshifter recycling machine is based on aerodynamic separation and material density differences. After uniform feeding through a belt or vibrating feeder, the material is evenly distributed into the separation chamber. A dual fan system generates a controlled and stable airflow, forming an upward and circulating air stream inside a large settling chamber. Under the action of air resistance, low-density materials such as plastic film, paper, textiles, and light wood are lifted and carried forward by the airflow, while heavier fractions such as stones, glass, metals, and inert aggregates lose momentum and fall downward due to gravity.
The separation efficiency is adjusted by controlling air volume, airflow velocity, and the feeding rate, allowing flexible adaptation to different waste compositions. The enlarged settling chamber reduces turbulence and prevents material blockage, ensuring continuous and stable operation even with irregular shredded mixtures. In typical configurations, the system achieves high-precision separation in a single pass, improving downstream sorting efficiency and reducing load on subsequent magnetic separation or manual sorting processes.
Video Show
Specifications
Windshifter systems are available in multiple models to match different waste types, plant layouts and capacity requirements. Key parameters include air pressure, air volume, feed size, power and processing capacity for MSW, C&D waste, RDF/SRF and industrial waste sorting applications.
| Model | Air Pressure (Pa) | Air Volume (m³/h) | Material Size (mm) | Power (kW) | Capacity (m³/h) |
|---|---|---|---|---|---|
| FXZ800 | 1500–2500 | 8000–18000 | ≤300 | 11–18.5 | 30–80 |
| FXZ1000 | 1800–2800 | 10000–20000 | ≤300 | 15–22 | 50–100 |
| FXZ1200 | 2000–3000 | 12000–25000 | ≤300 | 15–30 | 60–150 |
Advantages
The comprehensive windshifter machine delivers stable light–heavy separation for mixed waste streams. Dual fans and a large settling chamber keep material flow smooth and reduce clogging, even with shredded inputs. Air volume and flow speed are adjustable, allowing practical control of separation accuracy. It improves the quality of light fractions like film, paper, and textiles, and reduces burden on downstream sorting and recycling units.
Applications
Comprehensive windshifter machines are suitable for MSW, C&D waste, RDF/SRF, industrial waste, bulky waste, aged waste, and shredded mixed light–heavy materials after pre-shredding. They efficiently separate plastic film, paper, textiles, wood, and other light fractions from stones, glass, metals, sand, and heavy inert materials. The feed size can reach up to 300–500 mm, enabling stable separation into light and heavy streams for downstream recycling, material recovery, or RDF fuel production.
Custom Windshifter Recycling Machine Solutions
We provide customized windshifter solutions based on waste type, processing capacity and plant layout requirements. Customers are encouraged to share detailed project information such as material composition, target output and site conditions so we can design a suitable separation system and complete recycling line solution.
Custom Options Include:
- Processing capacity (20–250 m³/h or project requirement)
- Waste type (MSW, C&D waste, RDF/SRF, industrial waste)
- Feed material size
- Airflow system configuration
- Separation requirement (light/heavy purity level)
- Feeding and discharge layout Installation type (fixed or containerized)
- Dust control and sealing requirements
- Line integration requirements
Windshifter Recycling Manufacturer & Supplier

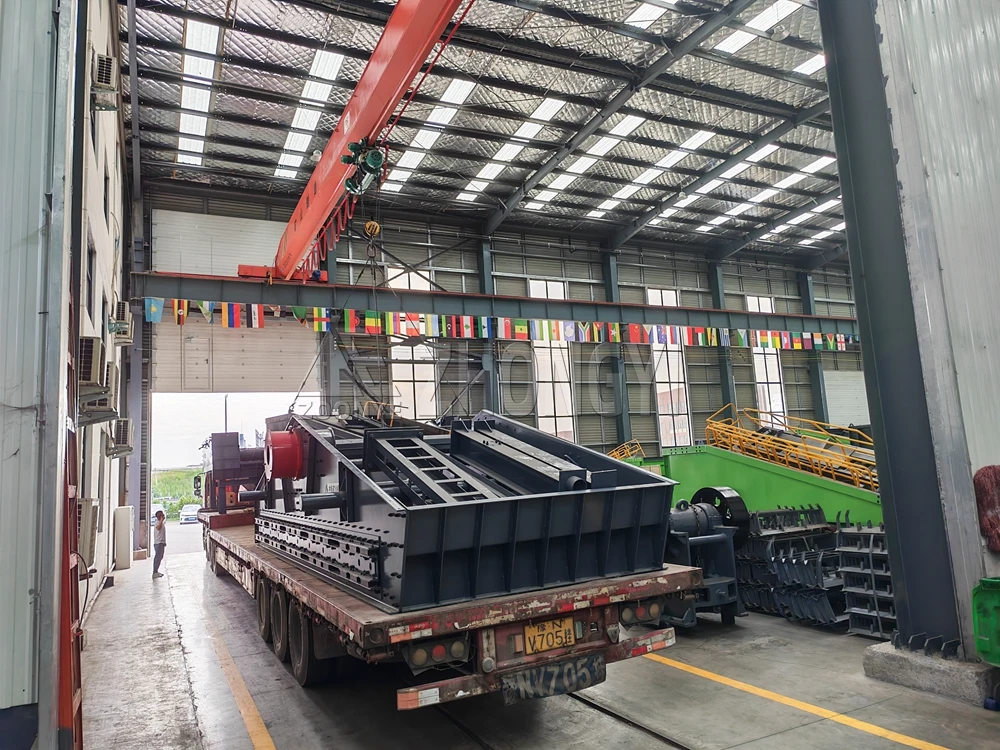

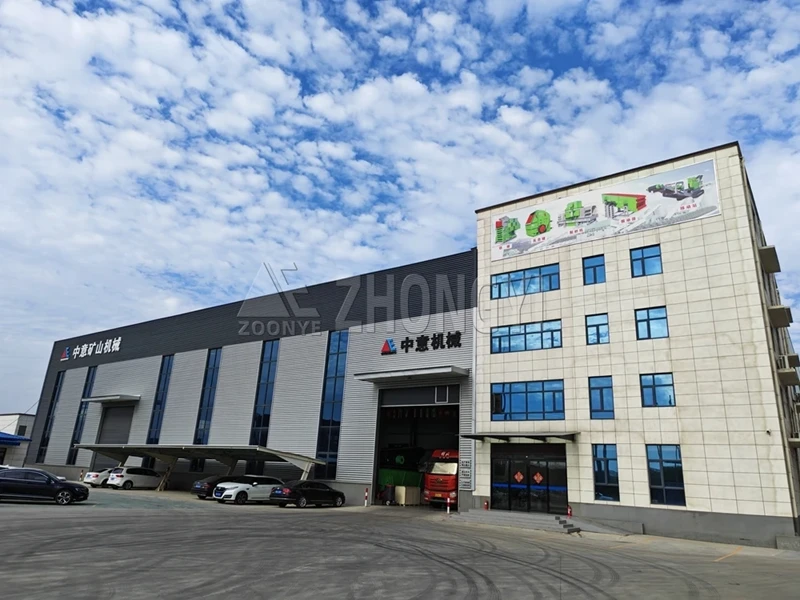

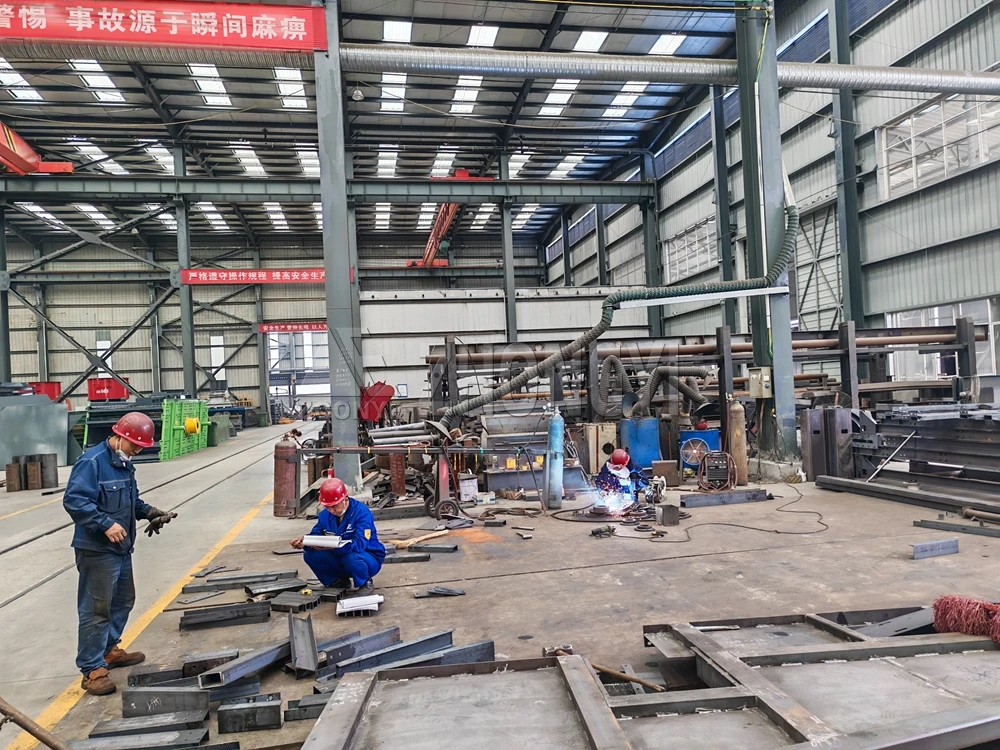

With over 16 years of experience in waste recycling equipment manufacturing, Xinzhongyi ECO is a direct manufacturer and system supplier of complete recycling solutions. We focus on windshifter systems and full production line integration, providing equipment design, manufacturing and turnkey project support for MSW, C&D waste, RDF/SRF and industrial waste applications.
We deliver one-stop solutions including process design, equipment supply, installation, commissioning and after-sales service, helping customers build stable and efficient recycling plants with reliable long-term operation.
FAQ
A windshifter is an air separation system used to separate light and heavy fractions in mixed waste based on density and airflow.
It separates film, paper, textiles and wood from stones, glass, metals and other heavy inert materials.
It is used in MSW, C&D waste, industrial waste and RDF/SRF production lines.
Generally up to 300–500 mm depending on upstream shredding or screening process.
Yes, they are commonly integrated with shredders, trommel screens, magnetic separators and other sorting equipment.
Material size, moisture content, airflow speed, feeding stability and material composition all affect performance.
