Equipment
Waste Crusher Machine
- Processing Capacity: 5–100 t/h
- Max Feed Size: ≤ 100–180 mm
- Capacity: 50–500 t/h
- Max Feed Size: ≤ 300–800 mm
- High Capacity: 1–1,120 tons/hour
- Feed Size: <1,200 mm
- Processing Capacity: 2–80 m³/h
- Applicable Materials: Metal, plastic, wood, tires, MSW, e-waste, textile waste, bulky waste
- Processing Capacity: 100–300 TPH
- Feed Size: ≤800 mm
- Motor Power: 90–500 kW
- Output Size: Φ30–Φ70 mm
What Is a Waste Crusher Machine?
A waste crusher machine is recycling equipment used in solid waste processing to crush, shred and reduce waste volume. It features stable operation, high efficiency and durable wear-resistant components.
Waste crusher machines process construction waste, MSW, plastics, metals, wood and RDF/SRF materials. They are widely used in recycling plants, waste treatment systems and environmental protection projects.
How Does a Waste Crusher Machine Work？
Waste crusher machines reduce large waste materials through compression, impact and shearing force. Different crushers use different crushing methods for solid waste processing, recycling and aggregate production.
Application:
Zhongyi has 15 years of industry experience in construction waste recycling and processing plant projects and offers proven solutions for the treatment of construction and demolition waste and mixed solid waste. With robust engineering capabilities, the company provides fully customized system designs tailored to the specific scale and material conditions of each project. We have a proven track record of delivering projects worldwide, offering full lifecycle service support and long-term operational value.
Suitable Materials
Waste crusher machines are used to reduce various solid waste materials into smaller sizes for easier sorting, recycling, and further processing. They are suitable for handling bulky, mixed, and irregular materials commonly found in municipal, industrial, and recycling applications, including:
Why Waste Crushing Is Important in Environmental Industry？
Waste crushing is a key process in modern recycling and solid waste processing. It helps reduce waste volume, improve material recovery and support sustainable environmental management systems.
Waste crushers reduce material volume by 60–80%, lowering transportation frequency and landfill space. Mobile crushing systems also reduce onsite waste handling costs.
Crushed materials are easier to separate and recycle. Metals, plastics, concrete and biomass can be recovered more efficiently for reuse in environmental industries.
Modern waste crushers help reduce landfill waste, dust and pollution. Enclosed crushing chambers and low-energy systems support cleaner waste treatment operations.
Types of Waste Crusher Machines
Waste crusher machines include shredders, jaw crushers, impact crushers and fine crushing equipment for different solid waste processing needs.
If you are not sure which waste crusher machine is suitable for your project, contact Henan Xinzhongyi Eco Equipment Co.,Ltd.. We can recommend suitable crushing solutions based on your waste materials, required capacity and complete recycling line configuration.
Construction Waste Shredder
Construction waste shredders are designed for crushing concrete, bricks, asphalt and reinforced building waste into reusable recycled aggregates. They feature heavy-duty structures, large feed openings and wear-resistant components.
These machines are widely used in demolition projects, construction waste recycling plants and solid waste recovery systems. They help reduce landfill costs, recover aggregates and improve resource utilization efficiency.
Construction Waste Shredder Specifications
| Model | Feed Size (mm) | Discharge Size (mm) | Drive Power (kW) | Capacity (m³/h) |
| PG1200 | 800 | 150 | 2×45 | 100–150 |
| PG1300 | 800 | 150 | 2×75 | 100–200 |
| PG1500 | 800 | 150 | 2×90 | 100–300 |
Jaw Crusher Machine (PE Series)
PE jaw crushers use compression crushing to break large hard materials through moving and fixed jaw plates. They feature high crushing ratio, simple structure and stable heavy-duty operation.
These machines are suitable for construction waste, concrete, stone and hard aggregates. They are widely used in construction waste recycling lines and aggregate production plants.
PE Series Jaw Crusher Machine Specifications
| Model | Feed Opening (mm) | Max Feed Size (mm) | Discharge Range (mm) | Capacity (t/h) | Motor Power (kW) |
| PE-250×400 | 250×400 | 210 | 20-60 | 4.5-20 | 15 |
| PE-400×600 | 400×600 | 340 | 40-100 | 15-53 | 30 |
| PE-500×750 | 500×750 | 425 | 50-100 | 38-90 | 55 |
| PE-600×900 | 600×900 | 500 | 65-180 | 45-128 | 55-75 |
| PE-750×1060 | 750×1060 | 630 | 80-180 | 108-225 | 90-110 |
| PE-800×1060 | 800×1060 | 650 | 100-200 | 128-215 | 90-110 |
| PE-870×1060 | 870×1060 | 750 | 170-270 | 218-353 | 90-110 |
| PE-900×1060 | 900×1060 | 780 | 200-290 | 255-375 | 90-110 |
| PE-900×1200 | 900×1200 | 780 | 95-255 | 220-450 | 110-132 |
| PE-1000×1200 | 1000×1200 | 850 | 195-280 | 315-500 | 110-132 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 180 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25 | 15 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 13-35 | 22 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 30-37 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-61 | 37 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 16-105 | 55 |
| PEX-500×1500 | 500×1500 | 350 | 30-110 | 30-110 | 90 |
European Type Impact Crushing Machine
European type impact crushers use high-speed impact crushing for secondary and fine crushing applications. They produce uniform particle size, good aggregate shape and stable output quality.
These machines are suitable for recycled aggregates, construction waste and environmental building materials. Adjustable discharge size helps improve recycled aggregate quality and material utilization.
European Type Impact Crushing Machine Specifications
| Model | Rotor diameter (mm) | Rotor length (mm) | Max. feed size (mm) | Capacity (t/h) | Power (kw) | Weight (t) | Dimension (mm) |
| PFW-1008 | 1000 | 800 | ≤200 | 55-85 | 55-75 | 10.184 | 2858×2508×2470 |
| PFW-1313 | 1280 | 1340 | ≤200 | 130-200 | 132-200 | 19.8 | 3210×2730×2545 |
| PFW-1515 | 1540 | 1500 | ≤300 | 250-350 | 280-315 | 30 | 3200×3082×3036 |
Single Shaft Shredder
Single shaft shredders use a rotating blade shaft and hydraulic feeding system to shred materials through cutting and tearing. They provide uniform output size, stable operation and low energy consumption.
These machines are suitable for plastics, wood, paper and light industrial waste. They are widely used in small and medium recycling plants that require controlled output size and lower investment costs.
Single Shaft Shredder Specifications
| Model | Motor Power | Rotor Diameter | Output Size | Capacity |
| SY1500 | 90 kW | Φ600 mm | Φ30–Φ70 mm | Custom / Medium |
| SY2000 | 132 / 160 kW | Φ700 mm | Φ30–Φ70 mm | Medium–High |
| SY2200 | (132–200)×2 kW | Φ800 mm | Φ30–Φ70 mm | High Capacity |
| SY2500 | 160 kW | Φ600 mm | Φ30–Φ70 mm | Medium–High |
| SY3000 | (200–250)×2 kW | Φ800 mm | Φ30–Φ70 mm | Extra High Capacity |
Double Shaft Shredder
Double shaft shredders use two low-speed rotating shafts to tear and shear waste materials. They provide high torque crushing capacity, stable operation and strong anti-wrapping performance.
These machines are suitable for MSW, metal drums, tires and bulky waste. They support continuous operation with low maintenance cost and are widely used in solid waste recycling plants.
Double Shaft Shredder Specifications
| Model | Motor Power (kW) | Shaft Speed (r/min) | Capacity (m³/h) | Blade Thickness / Quantity | Output Size |
| SL612 | 45×2 | 14–20 | 2–20 | 16–28 | Adjustable |
| SL912 | 75×2 | 11–20 | 2–9 | 20–40 | Adjustable |
| SLH912 | 110×2 | 6–16 | 3–30 | 20–40 | Adjustable |
| SL1216 | 75×2 / 90×2 / 110×2 | 10–20 | 8–30 / 8–30 / 10–50 | 16–30 | Adjustable |
| SL1418 | 160×2 / 200×2 / 220×2 / 250×2 | 10–20 | 30–50 | 14–18 | Adjustable |
| SL1620 | 160×2 / 200×2 / 220×2 / 250×2 | 10–20 | 40–80 | 14–18 | Adjustable |

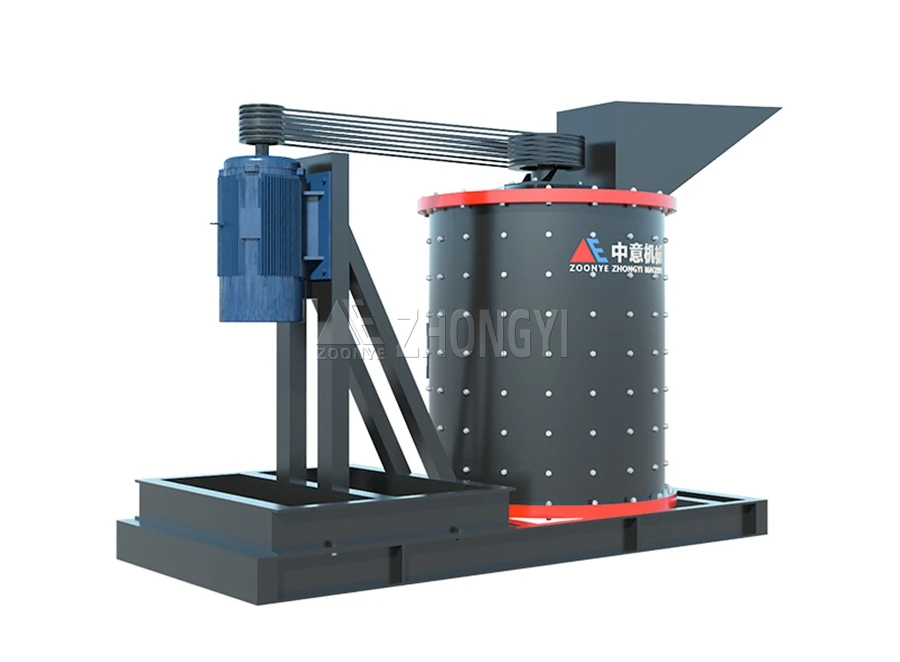

Vertical Compound Crusher
PFL vertical compound crushers use high-speed impact and grinding crushing for fine material processing. They feature one-time shaping, low energy consumption and strong fine crushing capacity.
These machines are suitable for brittle waste, construction materials and industrial slag. The screen-free structure reduces blockage and supports continuous crushing in recycling systems.
Vertical Compound Crusher Specifications
| Model | Feed Size (mm) | Cylinder Diameter (mm) | Discharge Size (mm) | Production Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) |
| PFL-750 Light Duty | <100 | 750 | <3-5 | 10-20 | 30-45 | 2100×1200×1700 |
| PFL-750 Heavy Duty | <100 | 750 | <3-5 | 10-20 | 30-45 | 2100×1200×1700 |
| PFL-1000 Light Duty | <120 | 1000 | <3-5 | 20-40 | 55 | 2600×1400×1900 |
| PFL-1000 Heavy Duty | <120 | 1000 | <3-5 | 20-40 | 55 | 2600×1400×1900 |
| PFL-1250 | <150 | 1250 | <3-5 | 40-70 | 90 | 2800×1600×2100 |
| PFL-1500 | <180 | 1500 | <3-5 | 70-100 | 132 | 3100×1900×2200 |
| PFL-1750 | <200 | 1750 | <3-5 | 90-130 | 160 | 3710×2360×2390 |
| PFL-2000 | <220 | 2000 | <3-5 | 100-160 | 185 | 4100×2660×2620 |
How to Choose the Right Waste Crusher Machine?
Choosing the right waste crusher machine depends on material type, production capacity, investment budget and recycling goals. Proper machine selection helps reduce wear, energy consumption and operating costs.
Jaw crushers are suitable for hard materials like concrete and stone. Double shaft shredders process mixed MSW and bulky waste, while single shaft shredders fit plastics and wood waste.
Small recycling plants usually select compact shredders with lower operating costs. Large recycling lines require heavy-duty crushers designed for continuous high-capacity processing.
Single shaft shredders and PFL crushers are suitable for low-budget projects. Large recycling plants often use double shaft shredders and impact crushers for higher production efficiency.
If you’re not sure which waste bag opener machine fits your project, contact Zhongyi Machinery. We can recommend a suitable solution based on your waste type, required capacity, and overall processing line.
Waste Crusher Machine Comparison
| Machine Type | Best For | Output Size | Capacity | Investment |
| Single Shaft Shredder | Plastic, wood, paper, light waste | Uniform | Medium | Low |
| Double Shaft Shredder | MSW, tires, bulky waste, metal drums | Coarse | High | Medium |
| Jaw Crusher Machine | Concrete, stone, construction waste | Large-Medium | High | Medium |
| European Type Impact Crusher | Recycled aggregates, secondary crushing | Fine | High | High |
| Vertical Compound Crusher (PFL) | Fine crushing, brittle materials, slag | Fine | Medium | Low |
Advantages
Our waste crusher machines are designed for efficient solid waste processing and recycling applications. They combine stable performance, strong crushing ability and flexible configuration to meet different material and production requirements in environmental projects.
Applications
Waste crusher machines are widely used in environmental protection and recycling industries. They help reduce waste volume, improve material reuse efficiency and support resource recovery across multiple industrial fields.
Complete Waste Recycling Solutions
Henan Xinzhongyi Eco Equipment Co.,Ltd. provides customized waste crushing solutions for different industries. Each system is designed based on material type, capacity and recycling goals, helping improve resource recovery and reduce landfill waste.
Construction and demolition waste solutions focus on crushing concrete, bricks and asphalt into reusable aggregates. These systems are widely used in demolition projects and recycling plants to support building material reuse and reduce disposal costs.
Municipal solid waste, plastic and biomass recycling solutions use shredders to reduce volume and prepare materials for sorting or RDF/SRF fuel production. Industrial waste systems handle metal, slag and mixed materials to improve recovery efficiency and stable continuous operation.
Get a Custom Waste Crusher Machine Solution
No two waste recycling projects are the same. Material type, processing capacity, plant layout, and output size requirements all affect the selection of a waste crusher machine.
If you are planning a new recycling line or upgrading an existing system, send us your waste type, capacity, and process requirements. We can recommend a suitable waste crusher model and provide a matched technical solution. We also support customized layouts and integrated crushing systems for construction waste plants, MSW recycling facilities, and RDF/SRF fuel production projects.
Why Choose Us as Your Waste Crusher Machine Supplier?
With 16 years of manufacturing experience, Xinzhongyi ECO is a reliable waste crusher machine manufacturer and supplier offering stable, efficient, and durable crushing equipment. We provide one-stop production line solutions, from equipment selection and customization to manufacturing and technical support, ensuring each system matches your material and capacity requirements.
As a direct factory, we focus on consistent quality, fast response, and long-term service support to help customers reduce operating cost and improve efficiency. If you are looking for a reliable waste crushing solution, feel free to send us your inquiry and our team will recommend the right configuration for your project.
FAQs
Waste crusher machines can handle construction waste, municipal solid waste, wood, plastic, metal scraps and industrial waste depending on model selection.
Selection depends on material type, capacity requirement, discharge size and site conditions. Single shaft, double shaft or jaw crusher are used for different applications.
Capacity ranges from 1 to 300+ tons per hour depending on machine type, motor power and material hardness. Customized high-capacity solutions are available.
Routine maintenance includes blade inspection, lubrication, screen replacement and hydraulic system checks to ensure continuous and stable operation.
Yes, heavy-duty crushers are designed for mixed C&D waste including concrete blocks, bricks, steel bars and wood, with optional pre-sorting systems.
Yes, full support includes installation guidance, operator training, spare parts supply and remote technical assistance for long-term stable operation.
