Equipment
Screening Equipment
- Processing Capacity: 30–400 m³/h
- Screen Opening Size: 25–70 mm
- Motor Power: 15–37 kW
- Processing Capacity: 10–150 m³/h
- Feed Size: ≤ 300 mm (customizable)
- Processing Capacity: 60–600 cubic meters per hour
- Feed Particle Size: ≤300 mm
- Installed Power: 15–30 kW
- Processing Capacity: 30–350 m³/h
- Processing Capacity: 30–750 cubic meters per hour
- Feed Particle Size: 0–400 millimeters
- Processing capacity: 40–150 m³/h
- Feed size: 8–50 mm
- Processing Capacity: 50–800 t/h
- Max Feed Size: ≤ 800 mm
- Processing Capacity: 20–300 t/h
- Max Feeding Size: ≤40 mm
What Is Waste Screening Equipment?
Waste screening equipment separates solid waste by particle size to remove impurities and improve recycling efficiency in MSW, RDF/SRF, biomass and industrial waste processing lines.
The system uses screens and mechanical motion to separate fine and oversized materials continuously, helping improve downstream sorting efficiency, material purity and resource recovery.
How Does Waste Screening Equipment Work?
Waste screening equipment separates mixed waste through vibration, rotation, airflow or ballistic motion. Fine particles pass through the screen, while oversized materials move to different discharge outlets for recycling.
Application:
Zhongyi has 15 years of experience in waste screening equipment and recycling plant projects, providing reliable screening solutions for MSW, C&D waste, biomass and industrial solid waste processing. With strong engineering and manufacturing capabilities, we offer customized screening systems based on different material characteristics, plant capacities and recycling requirements. Our equipment has been applied in global recycling projects with complete technical support and long-term operational stability.
Why Is Screening Important in Waste Recycling?
Screening equipment is a key part of waste recycling plants. It separates mixed waste, improves sorting efficiency, reduces landfill volume and increases the recovery value of recyclable materials. Henan Xinzhongyi Eco Equipment Co., Ltd. provides customized waste screening solutions for MSW, C&D waste and RDF recycling projects worldwide.
Types of Waste Screening Equipment
Waste screening equipment includes trommel screens, disc screens, ballistic separators and vibrating screens for different waste materials and recycling processes. Different machines are designed for wet waste, bulky waste, RDF production and fine material separation.
If you are not sure which waste screening equipment is suitable for your recycling project, contact Henan Xinzhongyi Eco Equipment Co., Ltd. We can recommend the right screening solution based on your material type, processing capacity and complete recycling plant requirements.

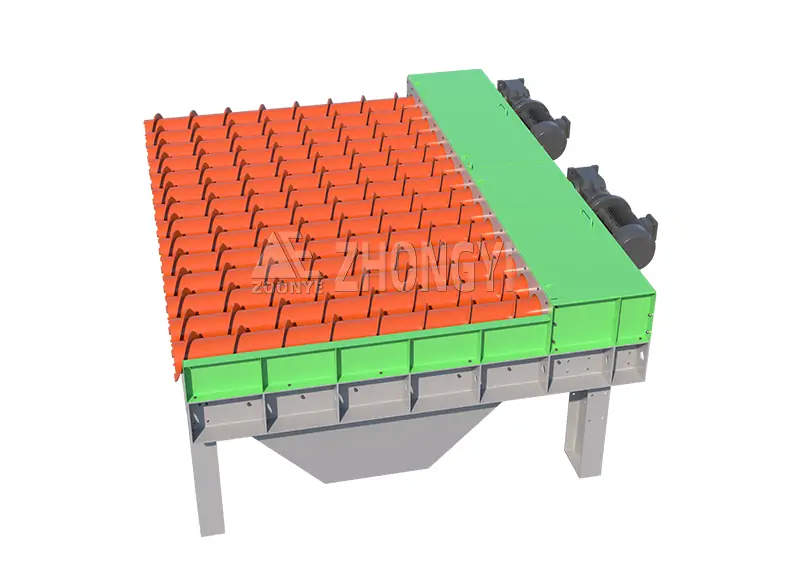

Waste Spiral Shaft Screen
The LX waste spiral shaft screen separates waste by size, density and shape through rotating spiral shafts. It features anti-clogging design, stable operation, low noise and larger throughput for wet and sticky waste screening.
It is suitable for kitchen waste, organic waste, municipal solid waste and mixed waste recycling lines. The machine is widely used in MSW pre-treatment and solid waste sorting plants.
Waste Spiral Shaft Screen Machine Specifications
| Model | Screening Structure | Power (kW) |
| LXS3022 | 12 Spiral Shafts | 2×11 |
| LXS3522 | 14 Spiral Shafts | 2×15 |
Ballistic Separator
The TTS ballistic separator separates 2D and 3D waste through bouncing motion and rotating screening plates. It provides accurate sorting, stable operation and high screening efficiency.
It is suitable for MSW, packaging waste, decoration waste and plastic recycling lines. The machine separates paper, film, bottles and lightweight materials efficiently.
Ballistic Separator Machine Specifications
| Model | Feed Size (mm) | Screen Aperture (mm) | Power (kW) |
| TTS1745 | <400 | 25–40 | 22 |
| TTS2145 | <400 | 25–40 | 22 |
| TTS2160 | <400 | 25–40 | 30 |
| TTS2460 | <400 | 25–40 | 30 |
| TTS2860 | <400 | 25–40 | 37 |
| TTS3070 | <400 | 25–40 | 45 |
Rotary Trommel Screen
The GTS rotary trommel screen uses an inclined rotating drum to separate waste materials by particle size. Materials tumble and roll inside the drum, while fine particles pass through the screen holes. The machine features stable operation, low noise, low dust and anti-clogging performance.
It is suitable for municipal solid waste, decoration waste, landfill waste, compost and biomass processing. The trommel screen is widely used in waste sorting plants for continuous screening of mixed solid waste and inert materials.
Rotary Trommel Screen Machine Specifications
| Model | Power (kW) | Processing Capacity (m³/h) |
| 3GTS-1530 | 11 | 20-150 |
| 3GTS-1548 | 15 | 30-200 |
| 3GTS-1830 | 15 | 30-250 |
| 3GTS-1850 | 18.5 | 30-250 |
| 3GTS-2030 | 15 | 30-250 |
| 3GTS-2050 | 22 | 30-250 |
| 3GTS-2070 | 30 | 30-250 |
| 3GTS-2230 | 37 | 30-300 |
| 3GTS-2250 | 37 | 30-300 |
| 3GTS-2270 | 37 | 30-300 |
Waste Sorting Disc Screen
The Waste Sorting Disc Screen uses rotating star discs to separate waste by size. Small materials fall through gaps, while larger materials move forward. It offers self-cleaning, anti-clogging and stable continuous screening performance.
It is widely used in MSW, RDF production, biomass, kitchen waste and construction waste recycling lines. It improves pre-screening efficiency and separates fine and coarse materials effectively.
Waste Sorting Disc Screen Machine Specifications
| Model | Material | Disc Opening (mm) | Disc Size (mm) | Shaft Qty | Power (kW) | Capacity (m³/h) |
| ZYZ3512 | Polyurethane | 5–160 | 150–350 | 8–12 | 18.5 | 80 |
| ZYZ5012 | Polyurethane | 5–160 | 150–350 | 10–14 | 22 | 130 |
| ZYZ7512 | Polyurethane | 5–160 | 150–350 | 12–16 | 27 | 180 |
MSW Roller Screen Separator
The MSW roller screen separator uses multi-shaft disc rollers to separate waste by size. Large materials move forward, while fine materials fall through gaps. It features high capacity, stable chain drive, low energy use and modular structure for easy maintenance.
It is widely used in MSW, construction waste, decoration waste, kitchen waste and bulky waste recycling. It replaces traditional trommel screens and improves screening efficiency in large solid waste sorting and recycling plants.
MSW Roller Screen Separator Machine Specifications
| Model | Power (kW) | Feed Size (mm) | Processing Capacity (t/h) |
| GZS1440 | 15+3+3+3 | 350 | 180–600 |
| GZS1840 | 22+3+3+3 | 450 | 350–1000 |
| GZS1440 (Soil Discharge Type) | 45–55 | 350 | 180–600 |
| GZS1420 | 37–55 | 330 | 150–500 |

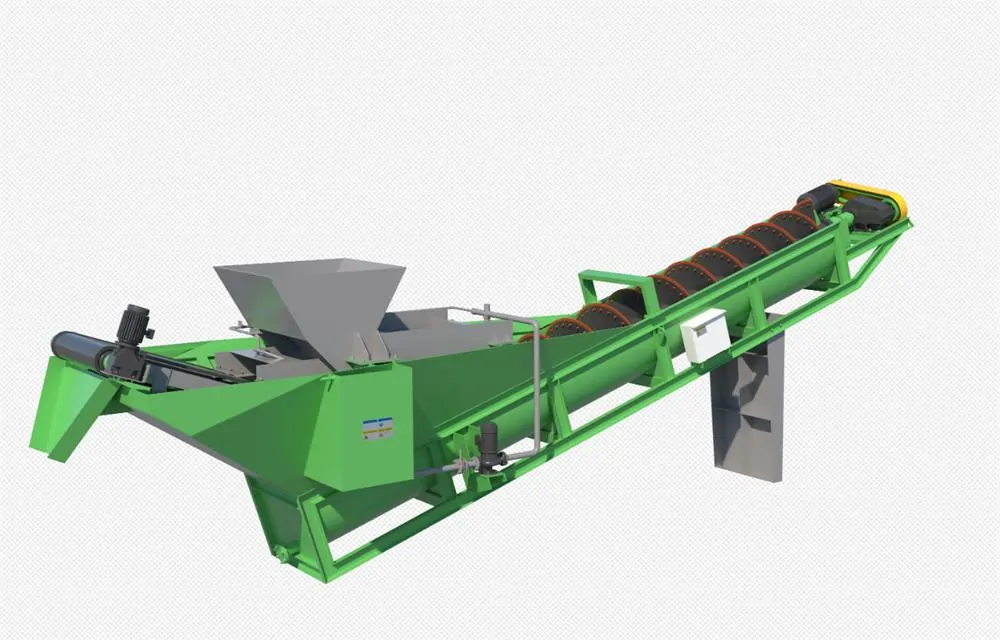

Light Fraction Separator for Waste Recycling
The FS light fraction separator uses water flotation and density differences to separate light materials from heavy aggregates. Plastic, wood, foam and paper float on the water surface, while heavy materials sink. It features high separation purity, low water loss and stable continuous operation.
It is widely used in construction waste, decoration waste and recycled aggregate processing lines. The machine removes lightweight impurities from crushed materials, improving recycled aggregate quality and supporting resource recycling applications.
Technical Specifications for Light-Fraction Separators
| Model | Agitation Power (kW) | Processing Capacity (m³/min) |
| FS-2 | 11 | 1–3 |
| FS-4 | 15 | 2–4 |
| FS-8 | 22 | 4–8 |
| SF-10 | 22 | 5–10 |
| SF-16 | 37 | 5–16 |
| SF-20 | 37 | 5–20 |

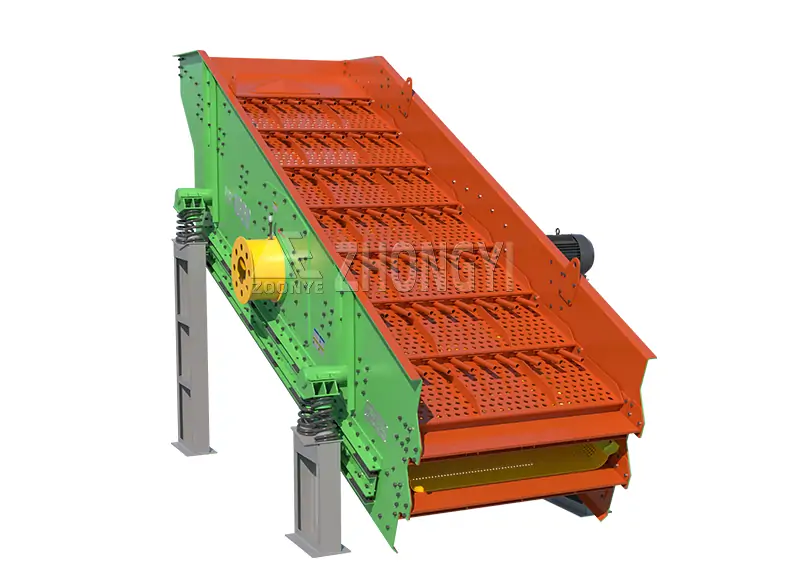

Vibrating Grizzly Screen
The YBF vibrating grizzly screen uses forced vibration and elastic polyurethane screen panels to separate wet and sticky materials efficiently. High-frequency stretching motion prevents screen blockage and improves screening performance for fine and difficult materials.
It is suitable for decoration waste, municipal solid waste, aged waste and other wet mixed materials. The machine is widely used in waste recycling plants for high-efficiency screening and continuous material separation.
Vibrating Grizzly Screen Specifications
| Model | Screen Aperture (mm) | Power (kW) |
| YBF-2P1860 | 8–25 | 22 |
| YBF-2P2160 | 8–25 | 30 |
| YBF-2P2460 | 8–25 | 30 |
| YBF-2P3060 | 8–25 | 30 |
Flip Flow Screen
The YKF flip flow screen uses elastic polyurethane screen panels and high-frequency vibration to screen wet and sticky materials. The continuous stretching and relaxing motion prevents screen blockage and improves screening efficiency for difficult materials.
It is suitable for decoration waste, aged waste, bulky waste, coal and wet mixed materials. The machine is widely used in recycling plants for fine screening and high-efficiency separation of sticky materials.
Flip Flow Screen Machine Specifications
| Model | Power (kW) |
|---|---|
| F5YK1540-2P | 11 |
| F5YK1548-2P | 11 |
| F5YK1848-2P | 5.5 |
| F5YK1860-2P | 15 |
| F5YK2148-2P | 18.5 |
| F5YK2160-2P | 22 |
| F5YK2460-1P | 22 |
| F5YK2460-2P | 30 |
| F5YK3060-1P | 30 |
| F5YK3060-2P | 30 |
Comparison of Different Waste Screening Machines
Different waste screening machines are designed for different materials, capacities and recycling goals. Choosing the right equipment can improve screening efficiency, reduce maintenance costs and increase recycling purity. The comparison below helps you quickly understand the advantages, applications and suitable working conditions of each screening machine.
| Equipment | Best For | Advantages | Material Type | Maintenance | Budget |
| Spiral Shaft Screen LX Series | Wet & sticky waste | Anti-clogging, large throughput, stable operation | Kitchen waste, organic waste, MSW | Low | Medium |
| Ballistic Separator TTS Series | 2D/3D waste separation | High sorting purity, automatic separation | Packaging waste, plastic, paper, MSW | Medium | High |
| Rotary Trommel Screen GTS Series | Wet mixed waste | Stable operation, low blockage, continuous screening | Compost, biomass, landfill waste, MSW | Low | Medium |
| Waste Sorting Disc Screen | RDF pre-screening | High efficiency, self-cleaning, compact structure | RDF, biomass, kitchen waste | Low | Medium |
| MSW Roller Screen Separator | Large-capacity waste sorting | High throughput, modular structure, anti-blocking | MSW, C&D waste, bulky waste | Medium | High |
| Light Fraction Separator FS Series | Lightweight impurity separation | High purity, low water loss, low labor cost | Plastic film, paper, recycled aggregates | Medium | Medium |
| Vibrating Grizzly Screen YBF Series | Wet sticky materials | Strong anti-blocking, high screening efficiency | Decoration waste, aged waste, wet fines | Medium | High |
| Flip Flow Screen YKF Series | Fine sticky material screening | Elastic screen surface, anti-clogging | Wet waste, slag, sticky fines | Medium | High |
How to Choose the Right Waste Screening Equipment?
Choosing the right waste screening equipment depends on material type, moisture content, plant capacity and automation requirements. Proper machine selection can improve screening efficiency, reduce operating costs and increase recycling performance.
Different waste materials require different screening systems. Trommel screens suit MSW and compost, ballistic separators fit packaging waste, while grizzly and flip flow screens handle C&D and sticky waste.
Wet and sticky waste requires anti-clogging equipment such as spiral shaft screens or flip flow screens. Dry waste and lightweight materials are suitable for vibrating screens and air separators.
Small plants around 5–20 TPH can use semi-automatic systems, while 100 TPH recycling plants usually require fully automatic screening and sorting lines for stable continuous operation.
If you’re not sure which waste screening equipment fits your recycling project, contact Zhongyi Machinery. We can recommend suitable screening solutions based on your waste type, moisture content, processing capacity and complete recycling line requirements.
Applications
Waste screening equipment is widely used in recycling and solid waste treatment plants. Different screening systems help separate mixed materials, improve recycling efficiency and reduce downstream processing costs.
Complete Waste Screening Solutions with System Integration
A waste screening machine is usually used as a key unit in a complete recycling and sorting line. In a typical system, it works together with feeders, crushers, conveyors, ballistic separators, air classifiers, magnetic separators, and centralized control systems.
This is important because screening is only one step in the full process. Waste type, moisture content, plant capacity, and final product requirements all determine how the screening equipment should be selected and arranged in the line.
Most customers are not purchasing a single machine. They need a complete and stable process solution. We provide customized screening system design and full plant integration for MSW recycling, C&D waste processing, RDF production, and solid waste recovery projects.
Why Choose Us as Your Bag Opener Machine Supplier?
16+
Years Experience
Xinzhongyi ECO is a professional manufacturer and supplier with over 16 years of experience in waste recycling and screening equipment. We focus on providing reliable screening machines and complete solid waste processing solutions for global projects. From single equipment supply to full plant design, we support MSW, C&D waste, RDF production and biomass recycling lines.
60+
National Patents
We combine engineering design, manufacturing and project service in one system. Customers get not only machines, but also layout planning, installation guidance and long-term technical support. With stable quality, customized solutions and fast response service, Xinzhongyi ECO helps clients build efficient and cost-effective recycling plants worldwide.
For many customers, the key point is not just buying a screening machine. It is getting the right screening solution that matches real waste conditions. We support customized screening system design, plant layout, installation, commissioning, and long-term service for MSW, C&D waste, RDF and recycling projects.
Get a Custom Waste Screening Solution
We provide customized waste screening and sorting solutions for different waste processing needs. From single screening equipment to fully integrated systems, our team can design complete production lines for MSW, C&D waste, plastic recycling, biomass, RDF, and industrial waste processing.
Tell us your material type, capacity, and project requirements, and we will recommend the right solution for your plant. Customizable options include screening equipment type, processing capacity, automation level, plant layout, mobility options, discharge size, and control systems.
FAQs
Waste screening equipment can process MSW, C&D waste, biomass, compost, RDF waste, and industrial solid waste. Different screen types are selected based on moisture, size, and material composition.
Selection depends on material type, capacity, moisture content, and required output purity. Trommel screens are used for wet waste, disc screens for RDF, and flip flow screens for sticky materials.
Efficiency can be improved by proper pre-sorting, choosing correct screen type, optimizing feeding system, and using multi-stage screening combined with air separation or ballistic separation.
Yes. Automated screening systems significantly reduce manual sorting needs by separating materials by size and type, improving processing speed and lowering labor dependency.
Screening capacity ranges from small units around 5–20 TPH to large industrial systems over 500–1000 TPH, depending on machine type and waste characteristics.
Yes. Screening systems can be fully customized, including screen size, structure, capacity, and integration with feeding, crushing, and sorting systems for complete recycling lines.
