What is an High Density Windshifter ?
FXG Series High Density Windshifter, also known as a density air separator or high-density air classifier, separates materials based on density differences through adjustable airflow. Compared with standard wind sifters, it is designed for more accurate separation of heavy and light fractions in C&D waste, MSW, industrial waste, and RDF production lines. It is commonly installed after shredders and screening equipment for further material classification.
The High Density Air Separator is available in four models to meet different processing requirements. Depending on the model, it operates with an air volume of 20,000–40,000 m³/h, air pressure of 2,000–3,500 Pa, a maximum feed size of up to 300–400 mm, and power ratings from 22–45 kW.
Xinzhongyi ECO manufactures customized FXG Series High Density Windshifters according to material composition, capacity, and plant requirements. We have 16+ years of recycling equipment experience, we provide equipment manufacturing, process design, installation guidance, and commissioning support. The system can be integrated with magnetic separators, eddy current separators, and optical sorting equipment for complete recycling lines.
Working Principle

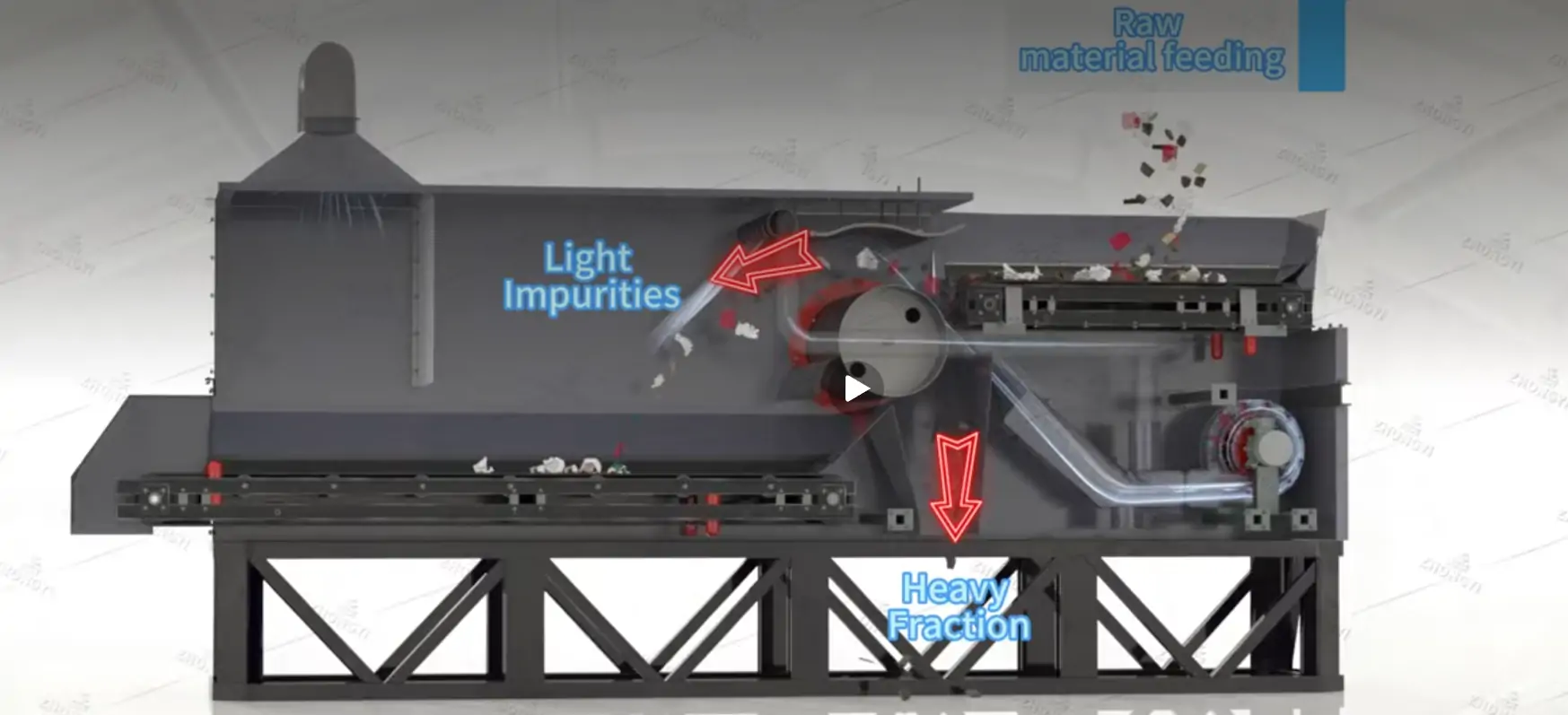

A High Density Air Separator separates mixed materials by combining controlled airflow with differences in material density. Mixed waste is fed into the machine, evenly dispersed, and passes through an adjustable airflow zone. Light and heavy materials follow different paths according to their density, enabling continuous air separation without water or manual sorting.
Heavy materials such as stones, glass, and metals are discharged from the heavy fraction outlet, while paper, plastic film, wood, and textiles are carried into the settling chamber for collection. Xinzhongyi ECO designs High Density Air Separators to match different material characteristics, processing capacities, and plant layouts. The equipment can be integrated into complete recycling lines with engineering support, installation, and commissioning services.
Parts

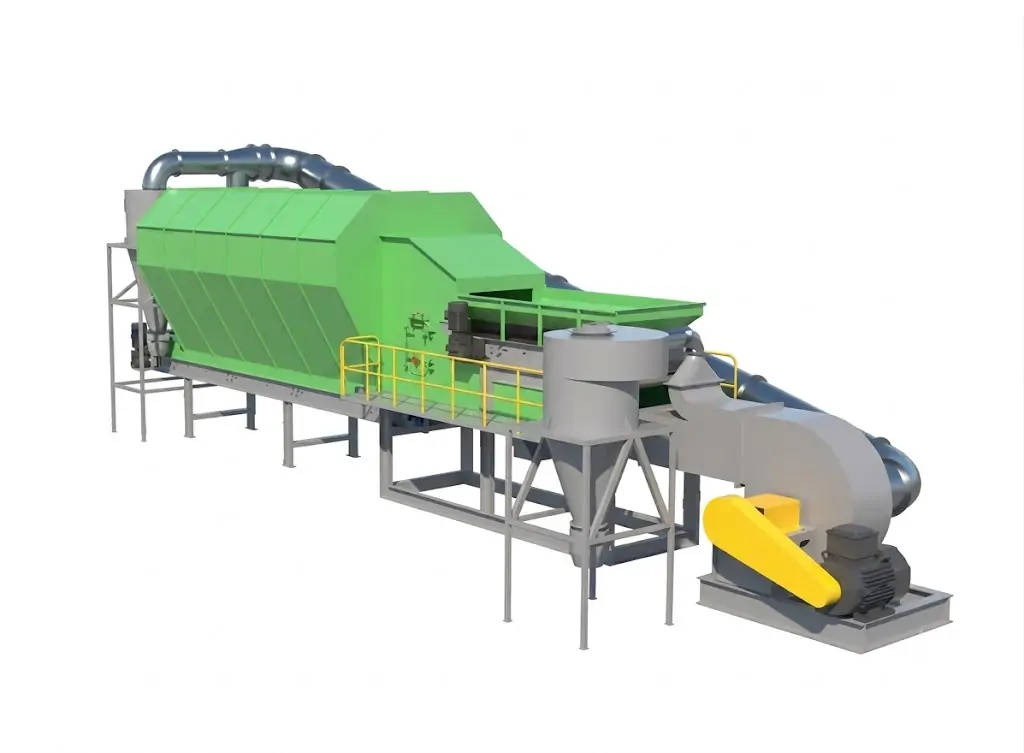

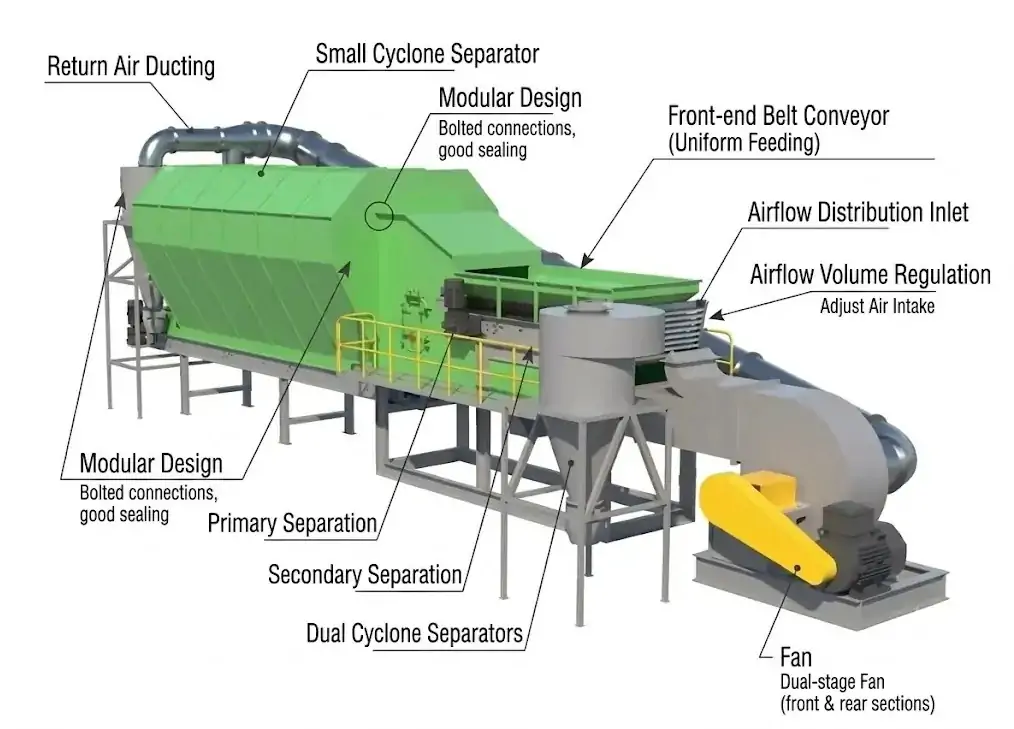

The High-Density Air Separator consists of a feed conveyor, air distribution unit, separation chamber, dual centrifugal blowers, cyclone collectors, and air return ductwork. The modular bolted structure provides reliable sealing, convenient assembly, and stable system operation.
Feed Conveyor
Delivers material at a uniform feed rate to maintain stable separation conditions.
Air Distribution Unit
Adjusts airflow volume and direction to suit different material properties and separation requirements.
Dual Centrifugal Blowers
Two independent blower units perform primary and secondary air separation, improving the removal of light fractions and overall separation efficiency.
Cyclone Collectors
Separate and collect lightweight materials from the air stream while reducing dust carryover.
Air Return Ductwork
Returns process air to the system, maintaining stable airflow and reducing operating energy consumption.
Specifications
The specifications shown below are for reference only. Equipment configuration can be customized according to material characteristics, processing capacity, and plant requirements.
| Model | Air Pressure (Pa) | Air Volume (m³/h) | Max. Feed Size (mm) | Power (kW) |
| FXG1000 | 2000–3500 | 20,000–30,000 | <300 | 22–30 |
| FXG1200 | 2000–3500 | 25,000–35,000 | <300 | 22–37 |
| FXG1400 | 2000–3500 | 30,000–40,000 | <400 | 22–37 |
| FXG1600 | 2000–3500 | 30,000–40,000 | <400 | 22–45 |
Suitable Materials
It is widely used in construction and demolition waste, municipal solid waste, commercial waste, industrial waste, and RDF/SRF processing lines. Processable materials include paper, cardboard, plastic film, textiles, wood, foam, rubber, glass, stones, aluminum, and other non-ferrous materials. The system delivers stable separation performance, improves material purity, and increases the recovery of valuable recyclable materials.
Advantages
Applications

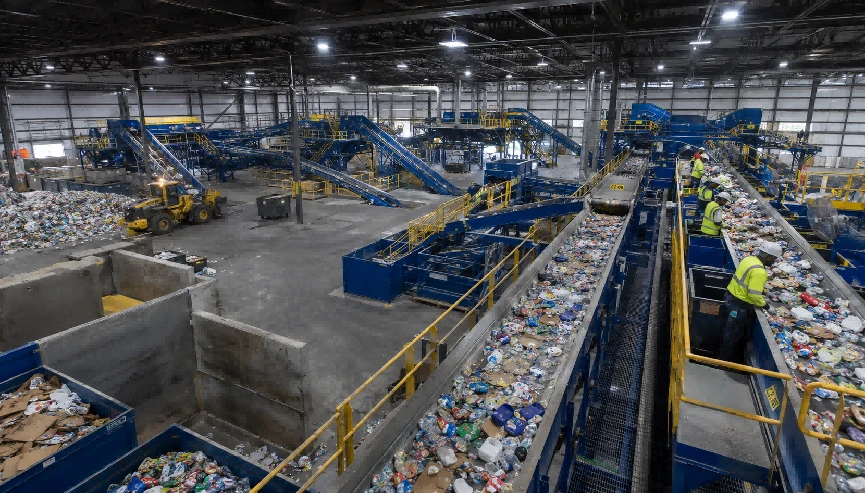

A High Density Air Separator is a recycling separation machine that uses controlled airflow to separate lightweight materials from heavy fractions in mixed waste streams. It is widely used in waste sorting plants to improve material purity, recovery efficiency, and downstream processing performance for C&D waste, MSW, industrial waste, RDF production, and plastic recycling applications.
Customized FXG Series High Density Windshifter Solutions
We provides customized FXG Series High Density Windshifter solutions for different waste recycling applications. Based on material characteristics, processing capacity, and plant requirements, include optimize airflow settings, equipment configuration, and system integration to achieve efficient separation of lightweight and heavy materials.
Custom Options Include:
- Airflow System Power & Configuration
- Separation Intensity Adjustment
- Feeding & Discharge Layout Design
- Fixed or Containerized Installation Design
- Dust Control & Sealing Options
- Integration with Existing Recycling Systems
High Density Windshifter Manufacturer & Supplier
Xinzhongyi ECO is a professional High Density Windshifter manufacturer and supplier with 16+ years of experience in waste recycling equipment. We provide customized air separation solutions for C&D waste, MSW, industrial waste, RDF production, and plastic recycling applications with reliable performance and stable operation.

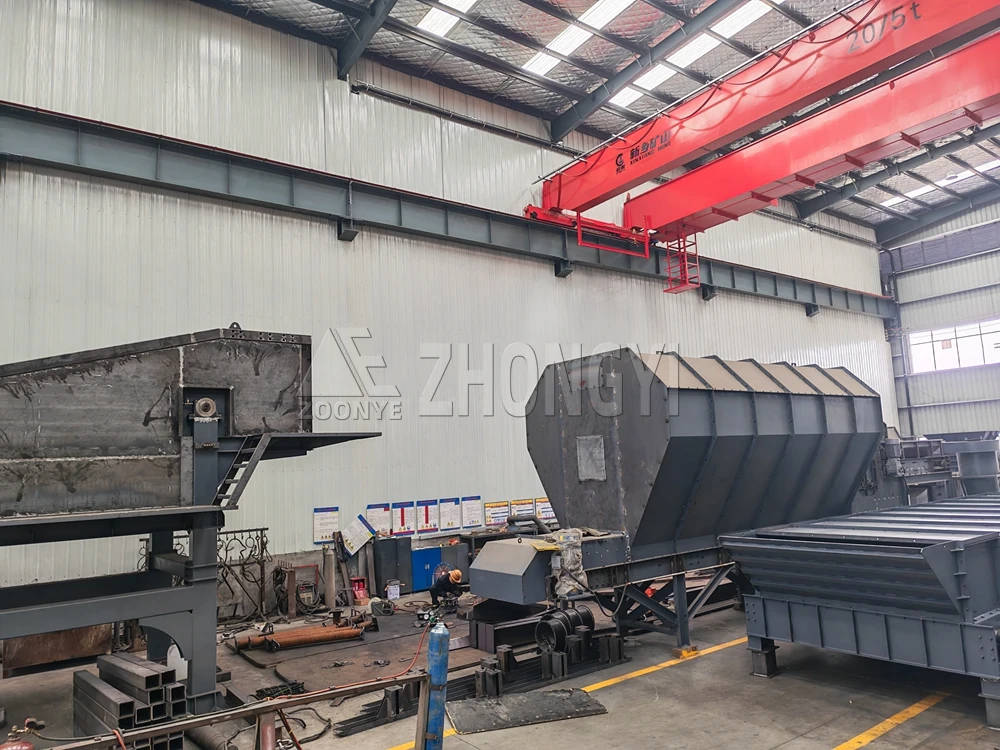

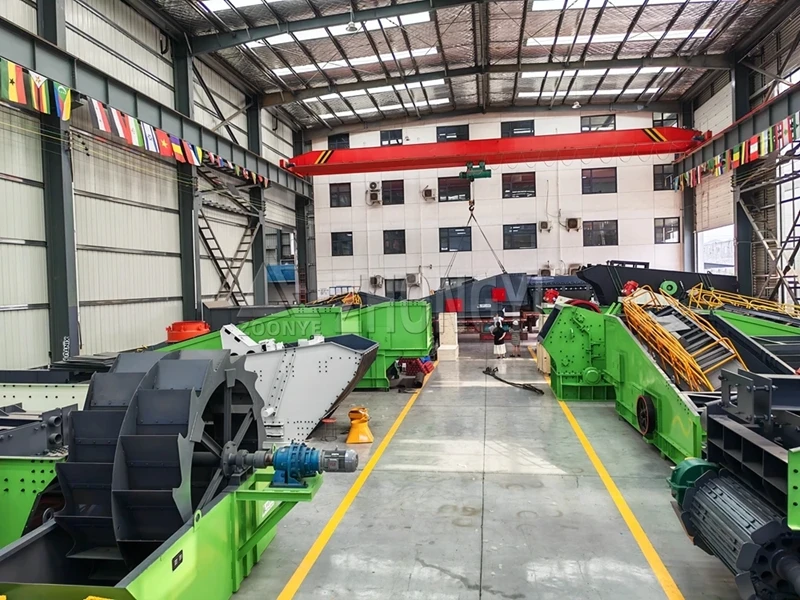

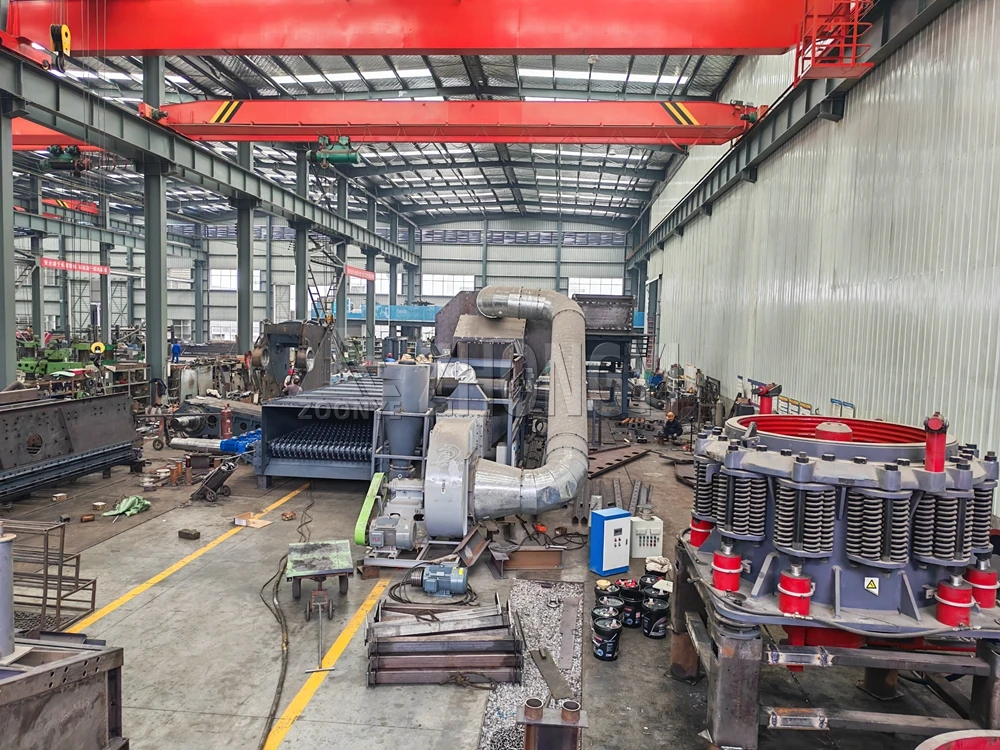

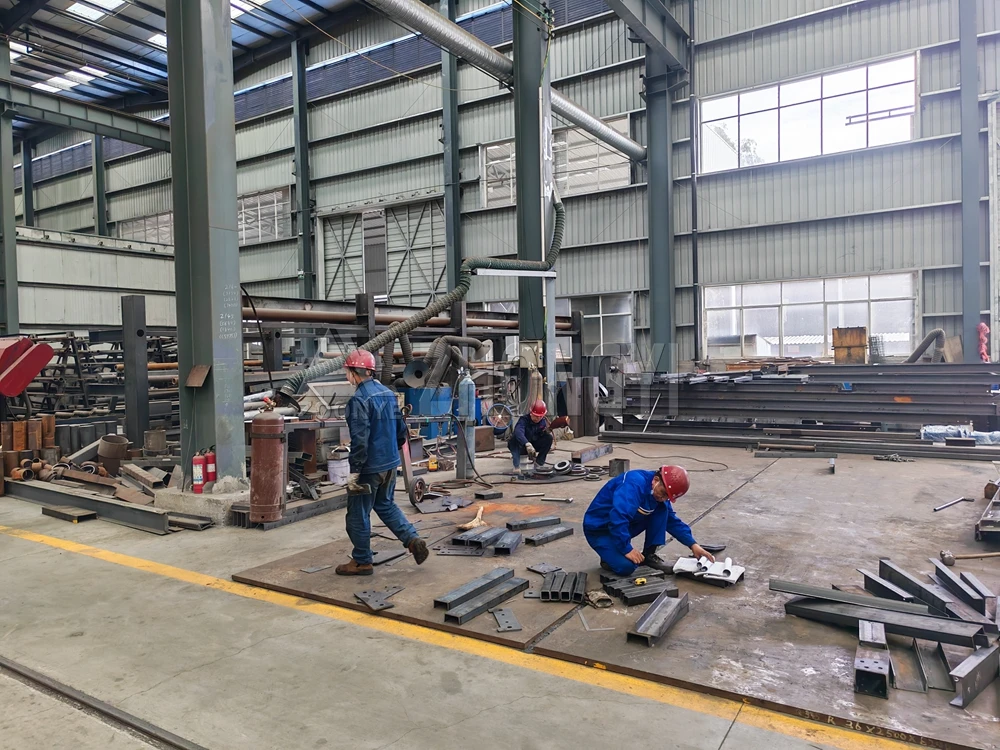

We have 3 production bases covering 300+ acres, we combine advanced manufacturing, strict quality control, and engineering support to ensure durable equipment performance. We provide complete services including process design, manufacturing, installation, commissioning, and after-sales support for global recycling projects.
FAQ
A High Density Windshifter separates lightweight materials from heavy fractions, including plastics, wood, paper, film, stones, glass, and other mixed waste materials.
It removes unwanted heavy contaminants and separates valuable lightweight fractions, improving material purity and downstream sorting performance.
Yes. We customize airflow settings, equipment configuration, feeding and discharge layout, and installation design based on material type and project requirements.

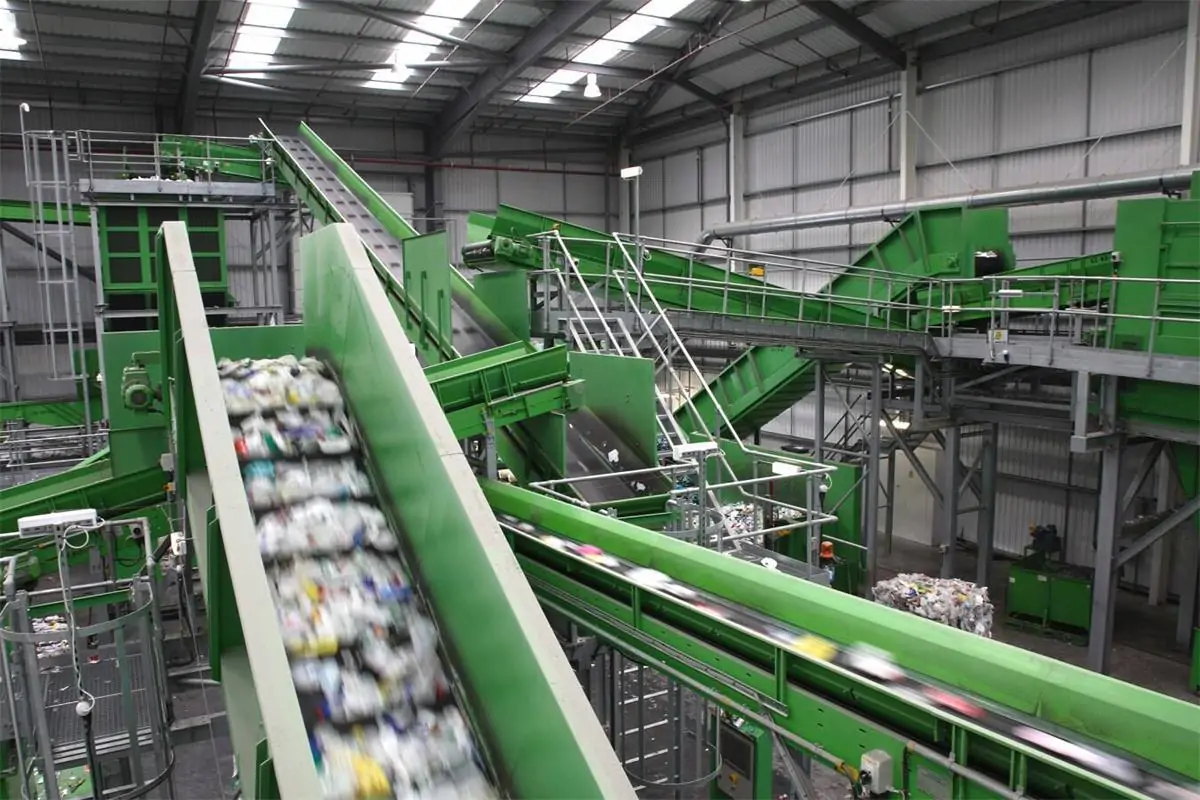

It is widely used in C&D waste recycling, MSW sorting, industrial waste processing, RDF/SRF production, and plastic recycling lines.
Model selection depends on material characteristics, processing capacity, feed size, separation requirements, and existing plant layout.
Yes. The equipment can be integrated with belt conveyors, screens, shredders, magnetic separators, and other sorting equipment.
We provide installation guidance, commissioning support, operation assistance, spare parts supply, and technical service to ensure stable operation.
Xinzhongyi ECO is a direct manufacturer with 16+ years of recycling equipment experience, providing customized solutions, reliable equipment quality, and complete project support.
