Project Overview
This project is a decoration waste sorting and disposal center designed for processing urban solid waste generated from construction and renovation activities in China. The client planned to build a stable and efficient construction waste recycling plant system with a designed capacity of 150–200 tons per hour, focusing on resource recovery and long-term operational stability.
≤1200 mm
Feeding Size
200 T/H
Processing Capacity
Communication & Project Background
At the early stage, the customer raised several practical concerns: mixed waste composition was complex, moisture content was unstable, and a large amount of bagged waste made direct sorting inefficient. They also expected a system that could reduce manual labor while improving recycling purity for downstream reuse.
After multiple rounds of technical discussion, Zhongyi engineers reviewed the site layout, waste characteristics, and end-product requirements. Based on this, we proposed a complete mechanical sorting solution combined with targeted manual picking cabin stations to balance efficiency and flexibility.
Our Solution
The final solution integrated crushing, screening, magnetic separation, air separation, and conveying systems into one continuous production line.
At the front end, a Single Shaft Bag Opener worked together with a chain plate conveyor to handle incoming mixed bagged waste. The bag opener used a low-speed tearing structure to efficiently open waste bags while avoiding excessive crushing of recyclable materials such as wood, plastics, paper, and light combustibles. This ensured stable feeding and improved separation performance in downstream equipment.

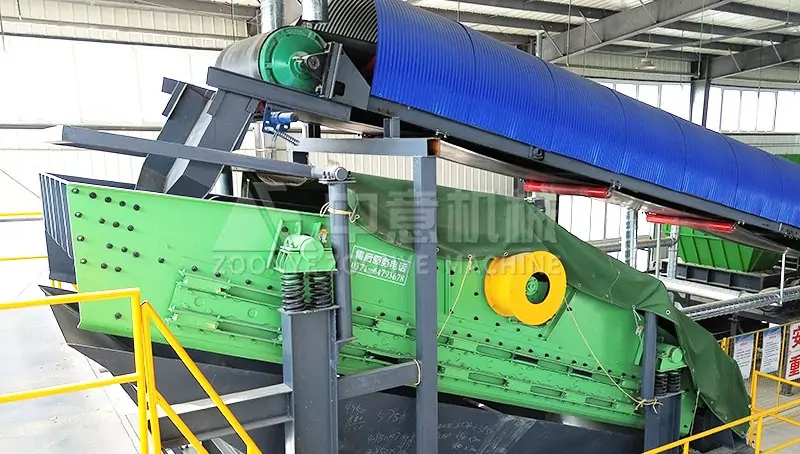

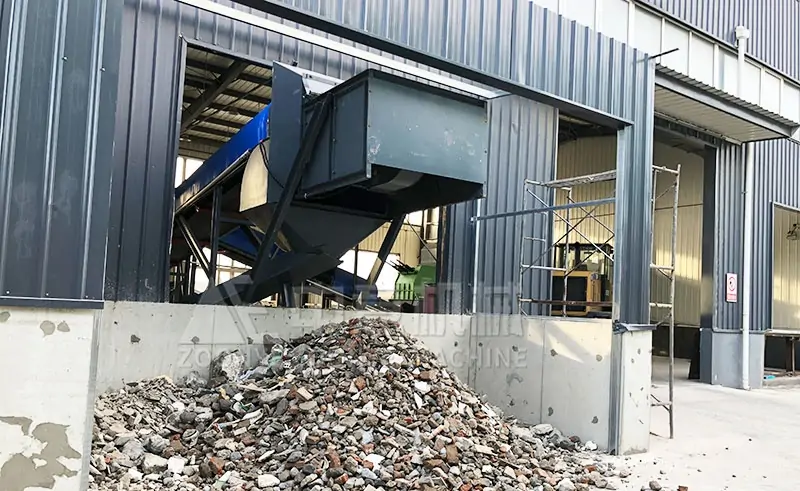

The core sorting section adopted multi-stage separation including trommel screening, bounce screening, vibrating screening, magnetic separation, and windshifter. Recyclable aggregates were separated and processed into reusable construction materials such as recycled aggregates for bricks and concrete production. Metals were recovered for recycling, while non-recyclable residues were sent for final disposal.
Production Line System Parameters
- Processing Capacity: 150–200 TPH
- Raw Material: Decoration waste / construction & demolition waste (solid waste)
- Core Equipment: Single Shaft Bag Opener, crusher system, trommel screen, bounce screen, vibrating screen, magnetic separator, air separator
- Sorting Method: Mechanical sorting + manual picking
- Separation Process: Crushing → Bag opening → Screening → Magnetic separation → Air separation → Recycling
- Dust Control System: Enclosed conveyor + mist spraying + pulse bag dust collector
- Plant Layout: Multi-layer integrated structure design
- Operation Mode: Continuous automatic operation with centralized control system
Gallery
System Advantages
Installation & Service Support
During project delivery, Zhongyi engineers provided on-site installation guidance and commissioning support. We stayed on-site during key stages such as equipment alignment, electrical connection, and trial operation, ensuring smooth startup of the entire system. Operator training was also provided to help the customer quickly master daily operation and maintenance.
Project Result
After the production line was put into operation, the decoration waste sorting center maintained stable processing capacity under continuous daily operation. The system improved overall sorting efficiency and reduced the workload of manual workers in the primary sorting section.
Compared with the previous manual sorting method, recyclable materials such as metal, wood, plastics, and recycled aggregates could be separated more efficiently, helping improve the recovery value of decoration waste. The stable operation of the bag opening and screening system also reduced material blockage and downtime during peak feeding periods.
Since commissioning, the production line has continued running steadily and has become an important part of the customer’s long-term solid waste recycling and resource recovery strategy.
Project Feedback
Before cooperation, we were concerned about unstable feeding, dust control, and the low efficiency of traditional decoration waste sorting. After the production line was commissioned, the system operated smoothly with stable throughput, and the coordination between the bag opener, screening, and separation equipment significantly improved sorting efficiency
