Project Overview
This project is a high-capacity commercial waste recycling plant custom-engineered for an environmental enterprise in Dubai, UAE. Designed to handle highly mixed urban solid waste and heavy commercial debris, the system deploys a fully automated “Intelligent Sorting + High-Efficiency Crushing” integrated matrix. By combining industrial solid waste shredders, impact crushers, and advanced AI optical sorting lines, the plant achieves precise resource recovery and volume reduction, setting a new benchmark for large-scale urban waste utilization in the Middle East.
300,000 Tons
Annual Capacity
Up to 500 TPD (Tons Per Day)
Processing Capacity
Communication & Project Background
A major state-backed environmental infrastructure group in Dubai was seeking to expand its processing capacity to handle escalating volumes of urban commercial solid waste. The existing facilities relied heavily on manual labor, resulting in substandard sorting efficiency, low resource recovery rates (under 50%), and soaring municipal landfill tax expenditures. The client required a heavy-duty, highly automated commercial waste recycling plant capable of processing up to 500 TPD (Tons Per Day) of highly complex mixed waste, ensuring maximum volume reduction and producing market-ready recycled aggregates.
Our Solution
To meet the rigorous environmental codes and tight localized commissioning schedules in the Middle East, Xinzhongyi Eco’s engineering matrix conducted multiple rounds of technical alignment with the client. Instead of opting for conventional low-throughput designs, Xinzhongyi Eco custom-engineered an intelligence-driven, high-capacity system layout:

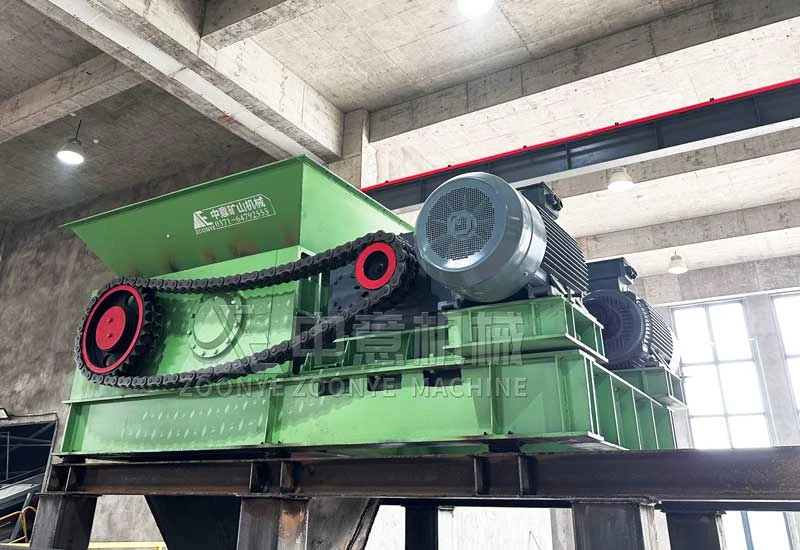

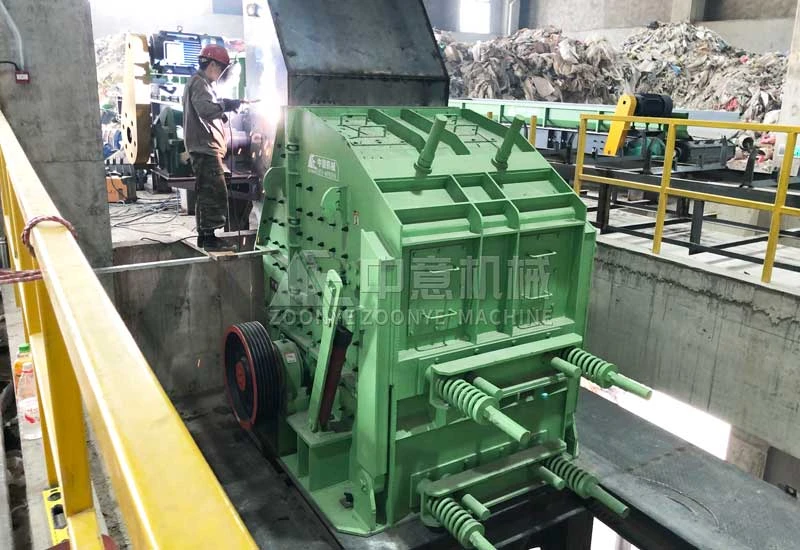

- Dual-Stage Heavy Crushing Matrix: Deployed a heavy-duty solid waste shredder for primary volume reduction, seamlessly feeding into a high-velocity impact crusher. This dual-stage configuration successfully refines bulk concrete rubble and industrial waste down to 5–20mm premium aggregates.
- AI Optical Sorting Integration: Integrated an advanced sensor-based sorting line utilizing AI visual recognition, magnetic separators, and air classifiers. This completely replaced high-risk manual pickers, boosting automated separation efficiency by 40% and reclaiming metals, polymers, and timber with an 80%+ recovery rate.
- Ultra-Fast Delivery & Industrial Mobilization: Leveraging our synchronized manufacturing supply chain, Xinzhongyi Eco accomplished complete system engineering and international shipment within a record-breaking 45 days, vastly exceeding global engineering delivery standards.
Production Line System Parameters
- Processing Capacity: Annual capacity exceeding 300,000 tons
- Raw Material: Highly complex commercial solid waste, industrial debris, concrete, timber, polymers
- Core Equipment: Dual-stage crushing system (Heavy-duty solid waste shredder + impact crusher), ballistic separator, AI optical sorting line, magnetic separator, pneumatic air sifter
- Sorting Method: Automated mechanical pre-sorting + AI visual recognition + multi-stage sensor extraction
- Separation Process: Primary Shredding → Ballistic Screening → AI Optical & Magnetic Sorting → Secondary Impact Crushing → 5–20 mm Aggregate Sizing
- Delivery & Installation Speed: 45-day rapid manufacture and shipment + 30-engineer on-site turnkey commissioning
- Operation Mode: Continuous heavy-duty automatic operation managed by a centralized PLC with remote diagnostic integration
Gallery
System Advantages
Installation & Service Support
To ensure rapid project localization, Xinzhongyi Eco dispatched a professional team of 30 technical engineers to guide the entire structural assembly and electrical integration. We remained on-site during critical load-testing and trial phases, providing specialized “one-on-one” operator training to the client’s local crew, ensuring they completely mastered parameter fine-tuning for the AI optical sorters and dual crushing stages.
Project Result
Since going into operation, this commercial waste recycling plant has consistently maintained its target throughput of 500 TPD (Tons Per Day) under rigorous daily duty cycles. The plant delivers an exceptional waste volume reduction rate of 85%+, treating up to 500 tons of solid waste daily and substantially slashing the client’s landfill disposal fees.
Furthermore, by replacing natural quarried stone with 5–20mm clean recycled aggregates, the project eliminates tens of thousands of tons of carbon emissions annually. Backed by Xinzhongyi Eco’s remote real-world diagnostic system and 24-hour rapid response, the entire processing line runs with optimized uptime, proving that intelligence-driven recycling yields supreme environmental and economic returns.
Project Feedback
“Xinzhongyi Eco’s dual-stage crushing and AI sorting integration has completely transformed our solid waste operations here in the UAE. Achieving a 85% volume reduction means we have drastically cut our daily landfill expenditures, while the AI optical sorting lines allow us to harvest high-purity metals and polymers with minimal manual overhead. The 5–20mm recycled aggregates are seeing massive demand from local road construction contractors. This automated system doesn’t just process waste—it effectively secures a highly profitable circular economy model for our entire enterprise.”
— Plant Director, Regional Environmental Infrastructure Group (Dubai, UAE)
